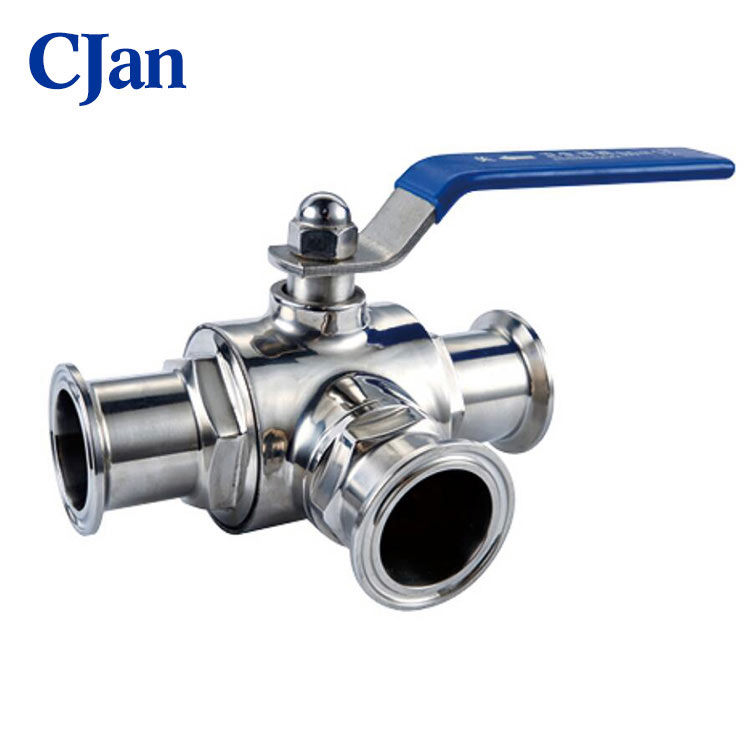

Sanitary Three-way Manual Ball Valve

Standard

SMS, DIN, AAA, IDF, ISO, RJT

Material Quality

SS304, SS304L, SS316, SS316L

Connection ends

Clamp End, Weld end, Male end and Female end

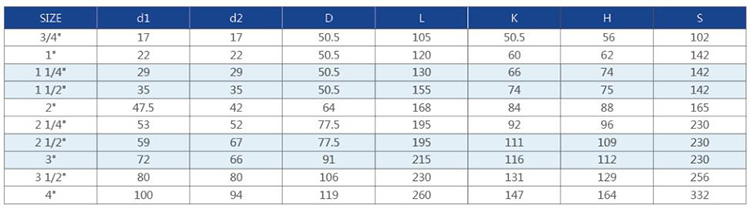

Port Size

1/2"~4",DN10~DN100

Gasket

EPDM, Silicone, Viton etc

Ball Seat

PTFE

Manual drive

Sensor, Muti-positon handle level, Pull handle level

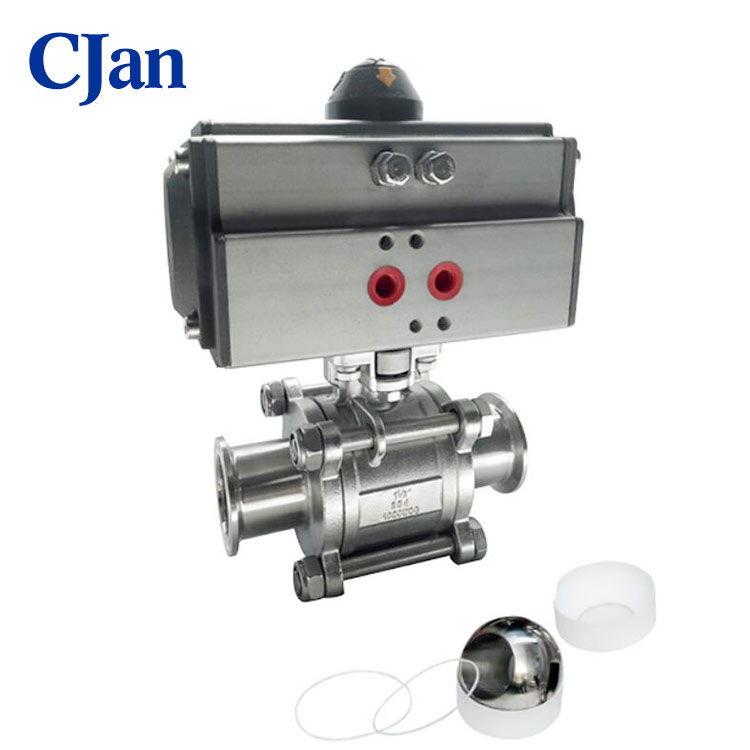

Pneumatic drive

Aluminum electric/Pneumatic actuator, Stainless steel electric/Pneumatic actuator

Intelligent C top controls

AS-I connection, Electric connection

Continuous

working temperature

-20°C ~ +135°C (EPDM, Silicone)

Pressure

0~10bar

Machine Processing

The most advanced CNC machine from Japan for processing

Special Design

we can produce according to your drawings
