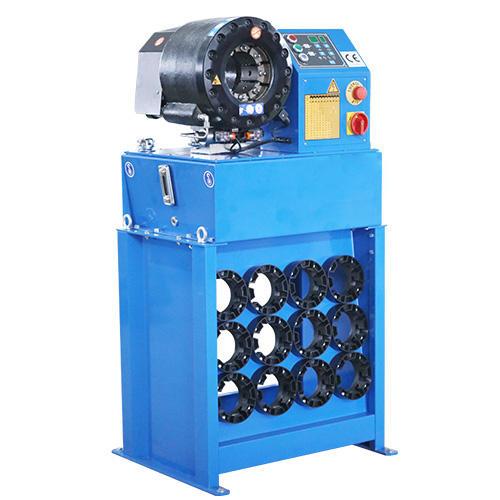

Crimping machine
TYPE CM32D

Benefit:
- Digital Precision Control
- Quick Change Tool and Die rack
- Energy Saving and Safety Operation
- TUV CE Approved

Main Specification CM32D
Max Hydraulic Hose 2" 4SP
Crimping Range mm 4-87
Die Type P32
Master Die Length mm 80
Max Opening mm +32
Motor KW 4
Crimping Force KN 2200
Crimpings Per Hour 1200
Control Digital Control
Foot pedal Included
Die Rack Included
Quick Change Tool Included
Backstop Device Optional
Control by Pressure Optional
Noise Level dBA 65
Protection Class IP56
L*W*H mm 680*600*1400
Weight KG 300



Standard Die Sets Included:

Die No. 10* 12* 14 16 19 22 26 30 34 39 45 51 57 63 69 74* 78*
Length 60 60 60 60 60 75 75 75 80 80 90 90 100 100 100 110 110
* Special Die sets or dedicated die sets for RYCO PARKER Manuli Eaton hose available upon request
