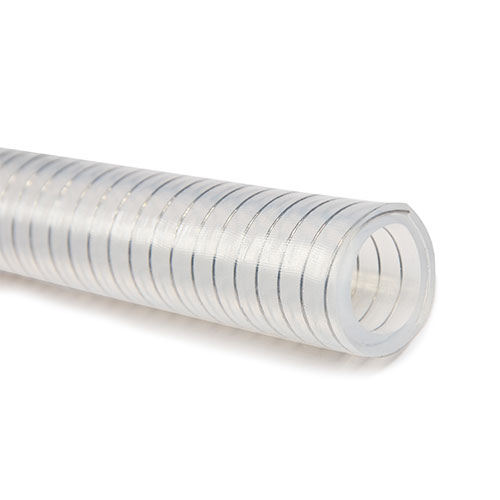

TYPE TSO
Transparent Stainless Steel Helix Reinforced Silicone Hose

Construction: Type TSO is manufactured from High purity platinum cured Silicone with stainless steel helix reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Transparent
Smooth inner and outer surface to resist material adhesion
Silicone pipe suitable for pressure and vacuum
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic

Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard length is 4 or 6 meters.

** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Part no. ID OD Bending radius Work pressure Bursting pressure Vacuum
in. mm mm mm bar bar bar
TSO006 1/4" 6.4 16.4 33 11 33 0.91
TSO008 5/16" 7.9 17.9 35 10 30 0.91
TSO010 3/8" 9.5 19.5 40 9 27 0.91
TSO013 1/2" 12.7 22.7 50 8.5 25.5 0.91
TSO016 5/8" 15.9 25.9 60 8 24 0.91
TSO019 3/4" 19 29 70 7.5 22.5 0.91
TSO022 7/8" 22 32 75 6.5 19.5 0.91
TSO025 1" 25.4 35.4 85 5.5 16.5 0.91
TSO032 1-1/4" 32 42 110 5 15 0.91
TSO038 1-1/2" 38 48 160 4.5 13.5 0.91
TSO045 1-3/4" 45 57 200 4.5 13.5 0.91
TSO051 2" 50.8 60.8 250 3.5 10.5 0.91
TSO064 2-1/2" 63.5 73.5 350 2.5 7.5 0.91
TSO076 3" 76.2 86.2 550 2 6 0.91
TSO089 3-1/2" 89 99 700 1.7 5.1 0.91
TSO102 4" 102 112 800 1.5 4.5 0.91
