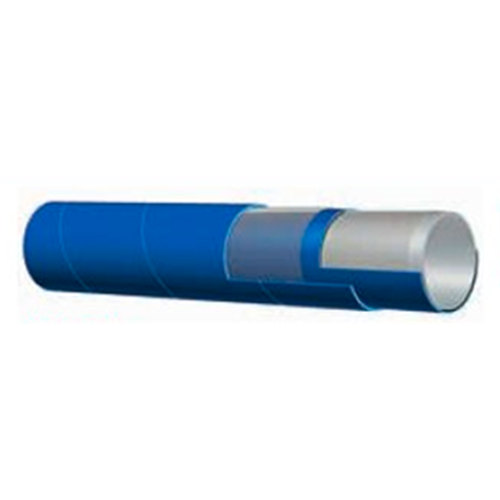

TYPE BFSD
BIIR Food Suction and Delivery Hose

Applications:
Suction and delivery of liquid foodstuffs such as fruit juice, drinks, wine, potable water and alcohol up to 96%. Also for liquid foodstuff tankers. Contains no phthalate.

Construction:
Tube: White BIIR, oil resistant, smooth
Reinforcement: Synthetic textile with embedded steel helix.
Cover: Blue CSM, oil and weather resistant, fabric impression.

Temperature Range: Water: - 30℃~+ 120℃
Standard/Approval: FDA 21 CFR 177.2600.

Part no.  ID  OD Bending radius Work pressure  Bursting pressure Vacuum  Weight Length
inch mm mm mm bar bar bar kg/m m
BFSD025 1" 25.4 37.0 50 10 30 0.9 0.97 40
BFSD032 1-1/4" 31.8 44.5 65 10 30 0.9 1.15 40
BFSD038 1-1/2" 38.0 52.0 75 10 30 0.9 1.32 40
BFSD051 2" 50.8 66.0 125 10 30 0.9 2.33 40
BFSD064 2-1/2" 63.5 79.5 160 10 30 0.9 2.5 40
BFSD076 3" 76.2 92.0 225 10 30 0.9 3.60 40
BFSD089 3-1/2" 89.0 106.0 320 10 30 0.9 4.10 40
BFSD102 4" 101.6 118.5 400 10 30 0.9 4.5 40
