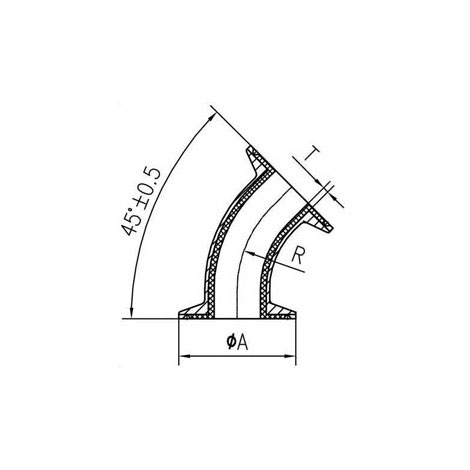

TYPE PL45ETC - PFA lined 45 degree tri-clamp fitting

TYPE PL45ETC - PFA lined 45 degree tri-clamp fitting

  • TYPE PLE - PFA lined CAMLOCK E

    TYPE PLE - PFA lined CAMLOCK E

    Fitting standard: A-A-59326/DIN 2828.Assembly: safety clamp.FEP or PTFE liners are available.Virgin and anti-static line...

  • TYPE PLDP - PFA lined CAMLOCK DP

    TYPE PLDP - PFA lined CAMLOCK DP

    Fitting standard: A-A-59326/DIN 2828.FEP or PTFE liners are available.Virgin and anti-static liners are available.Remark...

Fitting standard: 3A.
FEP or PTFE liners are available.
Virgin and anti-static liners are available.

Remark: Can be customized.

Part no. Fitting material Size A(mm) R(mm)
PL45ETC025S4 SS304+PFA 1" 50.5 38.1
PL45ETC040S4 SS304+PFA 1-1/2" 50.5 57.2
PL45ETC050S4 SS304+PFA 2" 64 76.2
PL45ETC065S4 SS304+PFA 2-1/2" 77.5 95.25
PL45ETC080S4 SS304+PFA 3" 91 114.3
PL45ETC100S4 SS304+PFA 4" 106 152.4
