Camlock-DC, Type DC - Stainless steel quick coupling camlock for hose fitting

Camlock-DC, Type DC - Stainless steel quick coupling camlock for hose fitting

  • TYPE FL - Hose Fitti...

    TYPE FL - Hose Fittings

    Shank standard: EN 14420-2 / DIN 2817.Assembly: safety clamp.Other flange standards are available.Ot...

  • TYPE GI - Female thr...

    TYPE GI - Female threaded with smooth hose shank

    Female threaded with smooth hose shankFittings standard: EN14420-5/DIN2817.Assembly: safety clampOth...

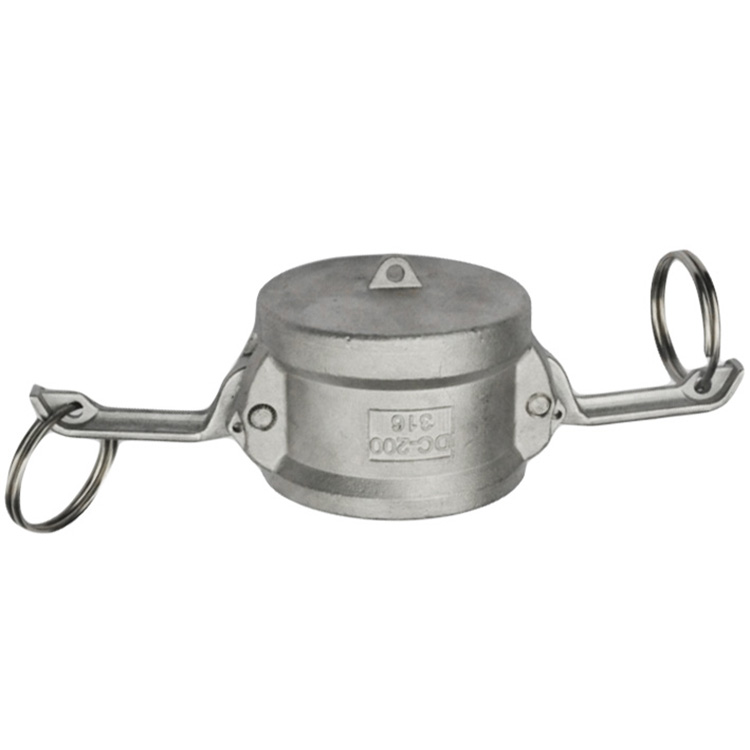

Camlock type DC

Fittings standard: A-A-59326/DIN 2828.

Other materials are available.

Remark: Can be customized.

Part no. Material Size Seal Arms QTY
DC019S6 SS316 3/4" NBR 1
DC025S6 SS316 1" NBR 2
DC032S6 SS316 1-1/4" NBR 2
DC038S6 SS316 1-1/2" NBR 2
DC051S6 SS316 2" NBR 2
DC064S6 SS316 2-1/2" NBR 2
DC076S6 SS316 3" NBR 2
DC102S6 SS316 4" NBR 2
DC127S6 SS316 5" NBR 2
DC152S6 SS316 6" NBR 2
