TYPE PLDM - PFA lined DIN male fitting with smooth hose shank

TYPE PLDM - PFA lined DIN male fitting with smooth hose shank

  • TYPE PLGI - PFA line...

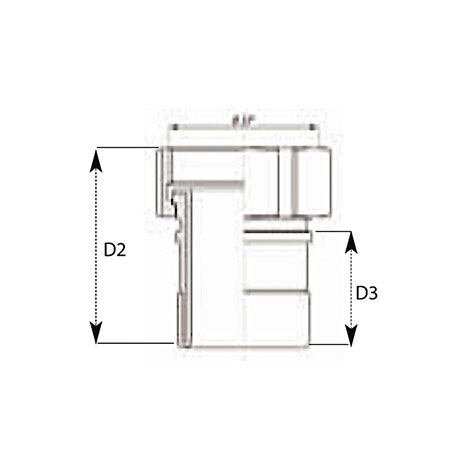

    TYPE PLGI - PFA lined female threaded with smooth hose shank

    Female threaded with smooth hose shankFitting standard: EN 14420-8/DIN 2817Assembly: safety clampFEP...

  • TYPE PLSLT - PFA lin...

    TYPE PLSLT - PFA lined swivel flange with toothed hose shank

    PFA lined swivel flange with toothed hose shankSwivel flange with toothed hose shank for connect wit...

Male fitting with smooth hose shank
Fitting standard: DIN11851
Assembly: safety clamp
FEP or PTFE liners are available.
Virgin and anti-static liners are available.

Remark: Can be customized.

Part no. Fitting material Size For hose D Thread D2 min D3 min
mm
PLDM019S6 SS316+PFA 3/4" 19 Rd 44 x 1/6" 74.0 34.0
PLDM025S6 SS316+PFA 1" 25 Rd 52 x 1/6" 74.0 34.0
PLDM032S6 SS316+PFA 1-1/4" 32 Rd 58 x 1/6" 74.0 34.0
PLDM038S6 SS316+PFA 1-1/2" 38 Rd 65 x 1/6" 74.0 33.5
PLDM050S6 SS316+PFA 2" 50 Rd 78 x 1/6" 80.5 40.0
PLDM063S6 SS316+PFA 2-1/2" 63 Rd 95 x 1/6" 107.0 52.0
PLDM075S6 SS316+PFA 3" 75 Rd 110 x 1/6" 127.5 56.0
PLDM100S6 SS316+PFA 4" 100 Rd 110 x 1/4" 144.0 80.5
