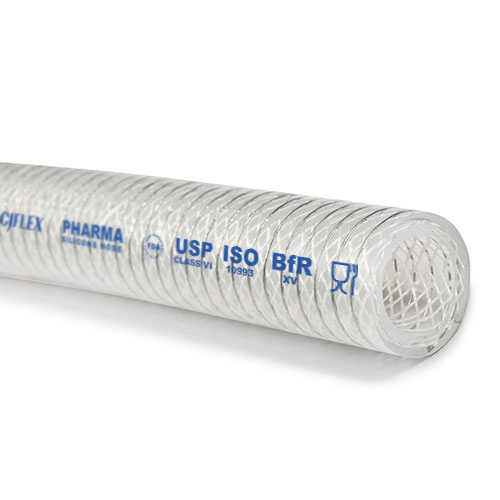

    TYPE BPT - Biopharmaceutical Silicone Tubing

    TYPE BPTBiopharmaceutical Silicone HoseApplications: Biopharmaceutical silicone hose for peristaltic...

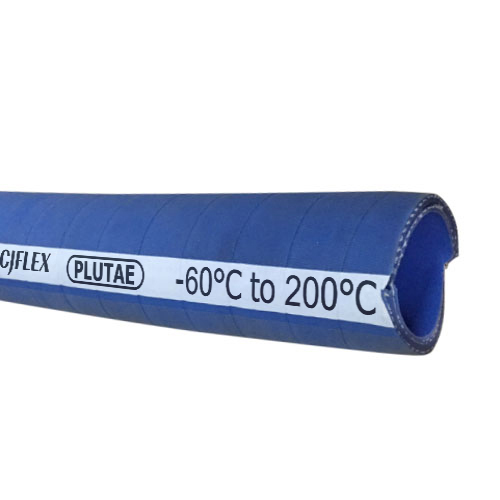

TYPE PLUTAE-
Delivery of antifreeze liquid in cooling system silicone hose

APPLICATION:

PLUTAE is recommended for suction and delivery of antifreeze liquid in the wind turbine cooling system where require a certain degree of flexibility and a long service life.

Silicone tubing Construction:

Tube: blue silicone rubber, smooth; heat and antifreeze liquid resistant
Reinforcements: High tensile textile cords with embedded steel helix wire
Cover: blue silicone rubber, fabric impression; abrasion, ozone resistant
Temp. Range: -50°C to 180°C. (-58°F to 356°F)

Suitable for pressure and vacuum.

Part no.  ID  OD  Bending radius  Work pressure  Bursting pressure  Vacuum
in.  mm  mm  mm  bar  bar  bar
PLU025 1" 25 35 68 10 30 0.9
PLU038 1-1/2" 38 49 115 7 21 0.9
PLU051 2" 51 62 150 6 18 0.9
