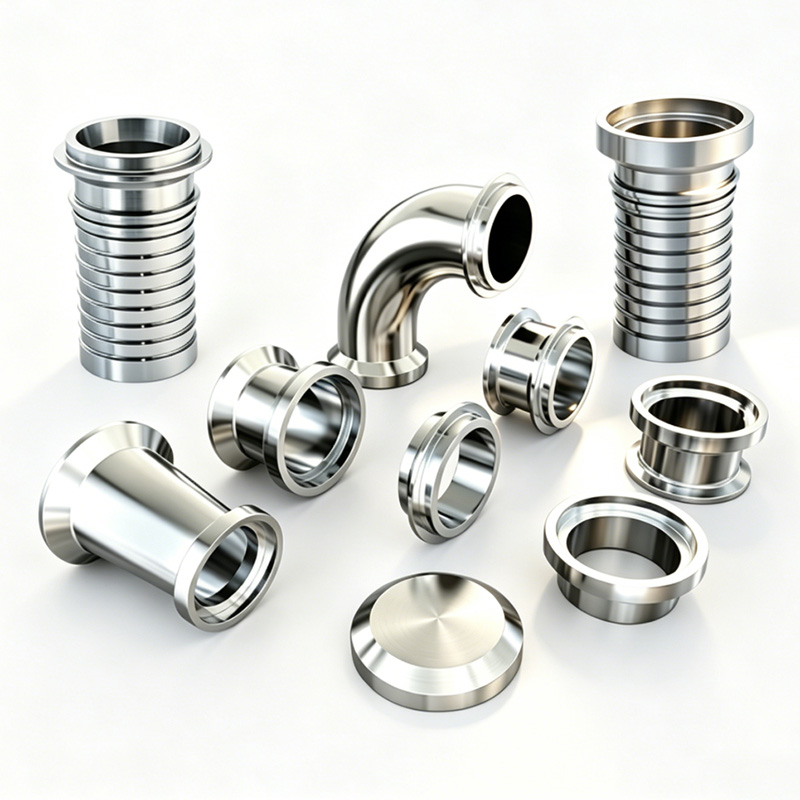

I-LINE Fittings
The I-LINE series consists of clamp-style sanitary high-pressure quick-connect fittings. Unlike conventional Tri-Clamp connections, the system features interlocking male and female I-profile grooves that securely retain gaskets in place. This construction delivers superior resistance to high pressure, elevated temperature, mechanical vibration and vacuum for demanding service conditions. Its dead-leg-free hygienic design complies with strict sanitary standards, while the clamp connection enables rapid assembly, disassembly and effortless cleaning.
I-LINE serves as an optimal piping solution across food & beverage, pharmaceutical and fine chemical industries for piping services featuring high working pressure, intense vibration, stringent cleanliness requirements and frequent disassembly for maintenance.
Typical Applications：
Pump nozzles & filter inlet/outlet ports
Fermentation tanks, preparation tanks & intermediate storage vessels
Heat exchangers and membrane separation equipment
Hard pipe to flexible hose transitions
Recurring-disassembly CIP piping circuits
Connection ports for high-pressure, high-temperature and high-vibration process equipment

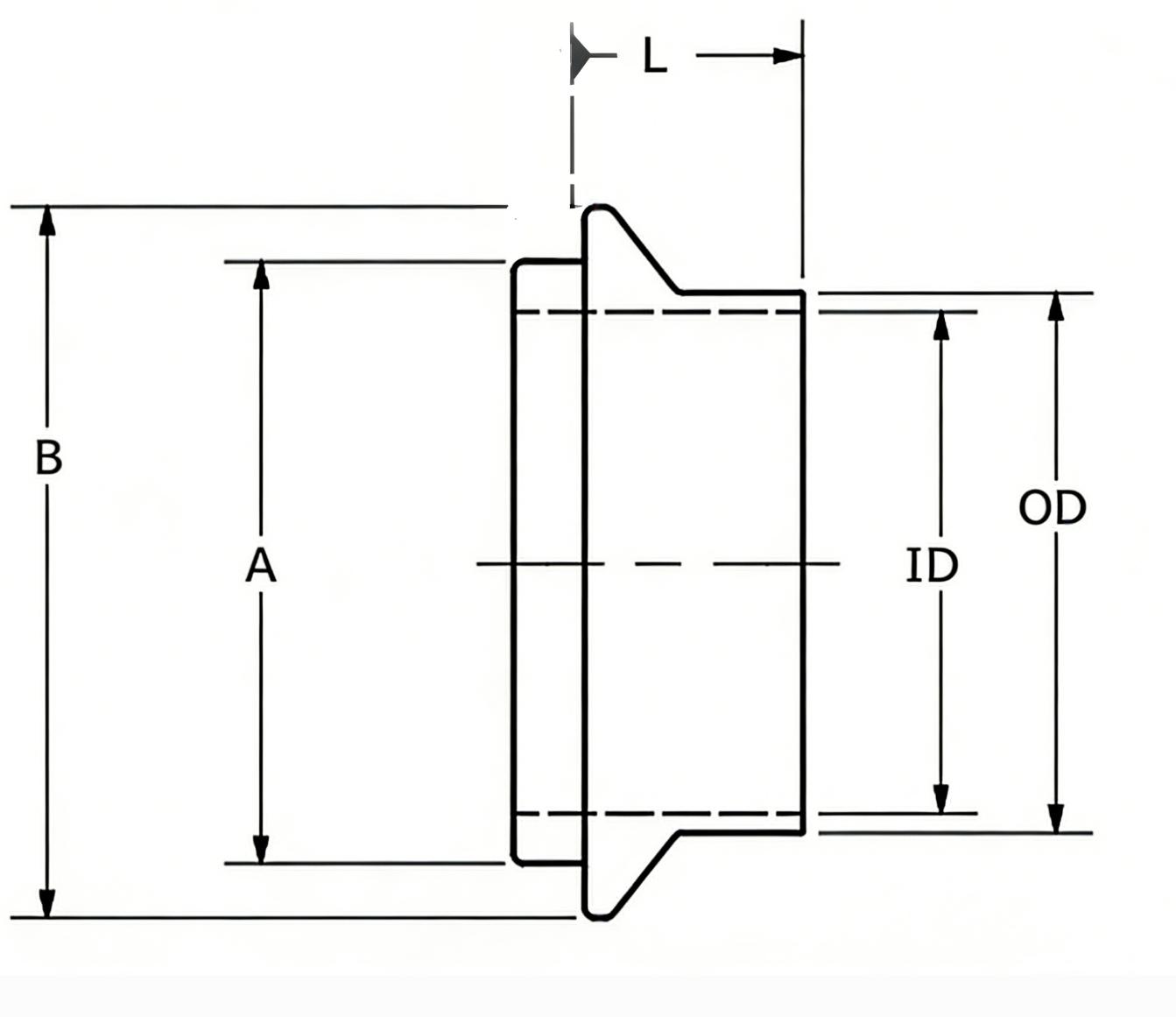

14WI: Male I-Line Weld Ferrule
| Inch | ID（mm） | OD（mm） | A（mm） | B（mm） | L（mm）short/long |
| 1" | 22.1 | 25.65 | 31.51 | 50.74 | 15.2/39.7 |
| 1.5" | 34.8 | 38.35 | 44.21 | 50.74 | 18.9/46.8 |
| 2" | 47.5 | 51.05 | 56.91 | 67.12 | 19.8/52.4 |
| 2.5" | 60.2 | 63.75 | 69.61 | 84.06 | 21.6/55.6 |
| 3" | 72.9 | 76.45 | 83.83 | 98.36 | 23/60.3 |
| 4" | 97.38 | 101.85 | 109.16 | 123.76 | 26.2/68.3 |
| 6" | 146.86 | 152.65 | 173.49 | 190.44 | 23.9/68.3 |
| 8" | 197.66 | 203.45 | 224.29 | 241.05 | 23.9/- |

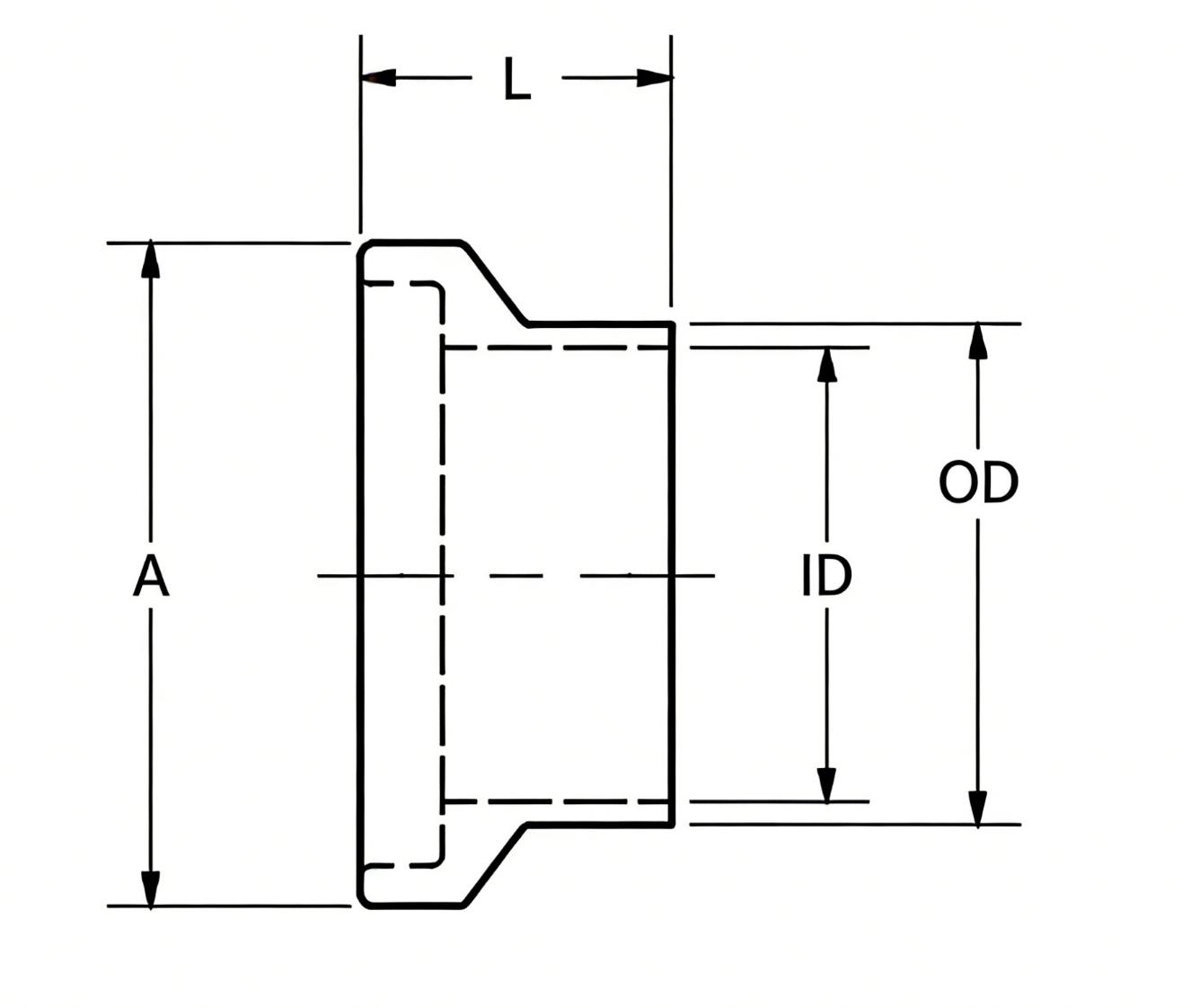

| Inch | ID（mm） | OD（mm） | A（mm） | L（mm）short/long |
| 1" | 22.1 | 25.65 | 50.74 | 20.0/44.4 |
| 1.5" | 34.8 | 38.35 | 50.74 | 24.1/51.6 |
| 2" | 47.5 | 51.05 | 67.12 | 26.3/58.7 |
| 2.5" | 60.2 | 63.75 | 84.06 | 29.5/63.5 |
| 3" | 72.9 | 76.45 | 98.36 | 31.1/68.3 |
| 4" | 97.38 | 101.85 | 123.76 | 34.2/76.2 |
| 6" | 146.86 | 152.65 | 190.44 | 28.7/76.2 |
| 8" | 197.66 | 203.45 | 241.05 | 28.7/- |
PS: Custom length (L) available upon request
