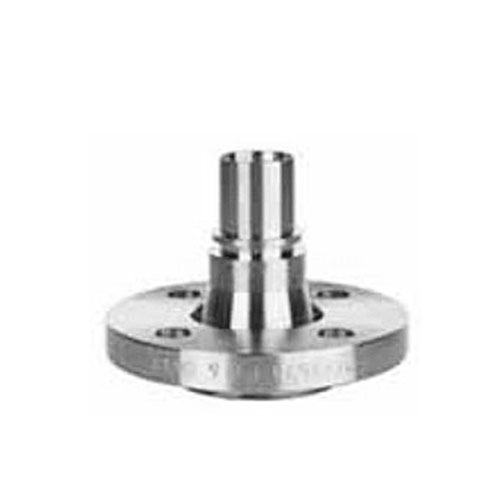

TYPE SL - Hose Fittings

TYPE SL - Hose Fittings

  • TYPE FLT - Hose Fittings

    TYPE FLT - Hose Fittings

    Fixed flange with toothed hose shank for connect with another hose closely, no easy to drop.Other flange standards are a...

  • TYPE SFN - Hose Fittings

    TYPE SFN - Hose Fittings

    Female fitting with smooth hose shank with nutFitting standard: SMSShank standard: EN14420-5/DIN2817Nut material: SS304A...

Shank standard: EN 14420-2 / DIN 2817.
Assembly: safety clamp.
Other flange standards are available.
Other materials are available.

Remark: Can be customized.

Part no. Material Size Flange standard For hose Weight
mm Kg/pcs
SL013S6-EN16 SS316 1/2" EN PN16 13 0.81
SL019S6-EN16 SS316 3/4" EN PN16 19 1.11
SL025S6-EN16 SS316 1" EN PN16 25 1.50
SL032S6-EN16 SS316 1-1/4" EN PN16 32 2.19
SL038S6-EN16 SS316 1-1/2" EN PN16 38 2.68
SL040S6-EN16 SS316 1-1/2" EN PN16 40 2.68
SL050S6-EN16 SS316 2" EN PN16 50 3.58
SL063S6-EN16 SS316 2-1/2" EN PN16 63 4.18
SL065S6-EN16 SS316 2-1/2" EN PN16 65 4.45
SL075S6-EN16 SS316 3" EN PN16 75 5.43
SL080S6-EN16 SS316 3" EN PN16 80 5.54
SL100S6-EN16 SS316 4" EN PN16 100 6.89
SL125S6-EN16 SS316 5" EN PN16 125 9.13
SL150S6-EN16 SS316 6" EN PN16 150 12.44
