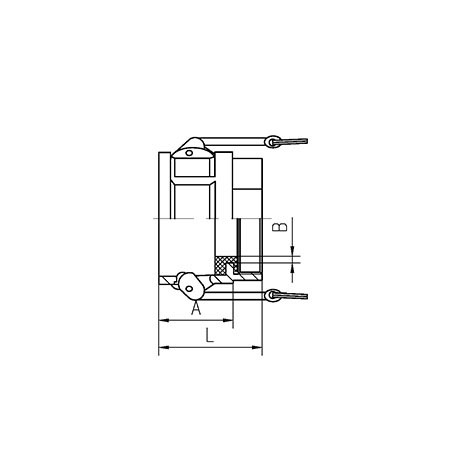

TYPE PLD - PFA lined CAMLOCK D

TYPE PLD - PFA lined CAMLOCK D

Fitting standard: A-A-59326/DIN 2828.
FEP or PTFE liners are available.
Virgin and anti-static liners are available.
Remark: Can be customized.

Part no. Fitting material Size Thread Thread seal D±0.1 D2 min
PLD019S6 SS316+PFA 3/4" G3/4 PTFE 32.4 45.0
PLD025S6 SS316+PFA 1" G1 PTFE 37.3 53.0
PLD032S6 SS316+PFA 1-1/4" G1-1/4 PTFE 46.0 59.0
PLD038S6 SS316+PFA 1-1/2" G1-1/2 PTFE 54.0 65.0
PLD050S6 SS316+PFA 2" G2 PTFE 63.8 73.0
PLD063S6 SS316+PFA 2-1/2" G2-1/2 PTFE 76.5 77.5
PLD076S6 SS316+PFA 3" G3 PTFE 92.2 81.0
PLD102S6 SS316+PFA 4" G4 PTFE 120.3 85.5
