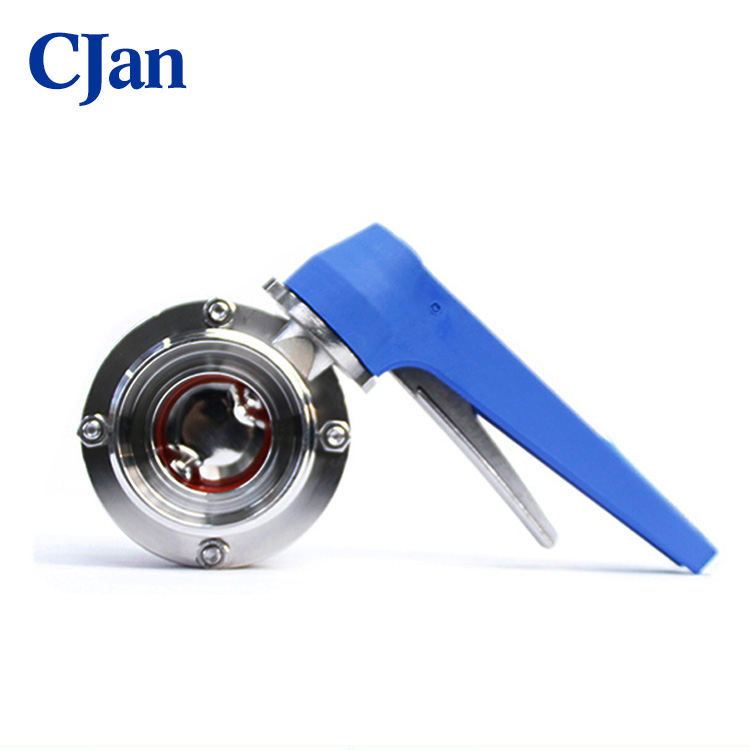

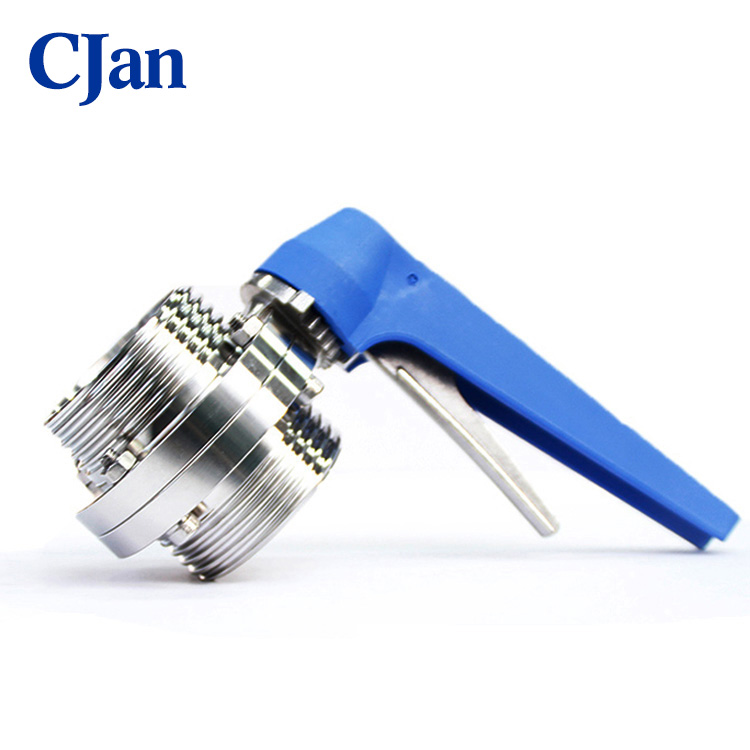

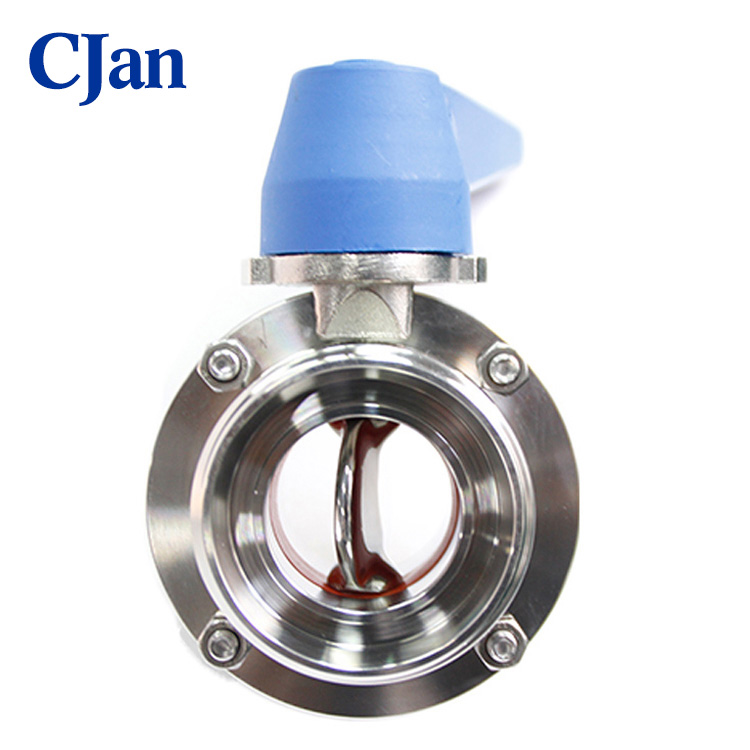

Stainless Steel Threaded Butterfly Valve With Blue Multi Position Handle
Product Name:  Stainless Steel Threaded Butterfly Valve With Blue Multi Positio
 Material:  SS304 or SS316L
 Standard:  SMS, 3A, DIN, IDF, RJT, ISO
 Size:  DN10-300 or 3/4" - 12"
 Connection Way:  Weld, Clamp, Thread, Flange,etc
 Operated:  Manual, Pneumatic or Electric
 Manual Handle:

 Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),

 Stainless Steel Trigger Hanlde (13 Positions)

 Seal Material opition  Silicon, EPDM NBR or Viton
 Surface Finishing:  Ra0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Working Pressure:  0.2-10 Bar (DN-25/100), 0.2-8 Bar (DN-125/150)
 Certificate   ISO9001:2008, CE
 Application Scope  Dairy, Food, Beverage, Pharmacy, Cosmetic, Liquid Sampling, Biological
 All of the products have been 100% press tested before shipping.
