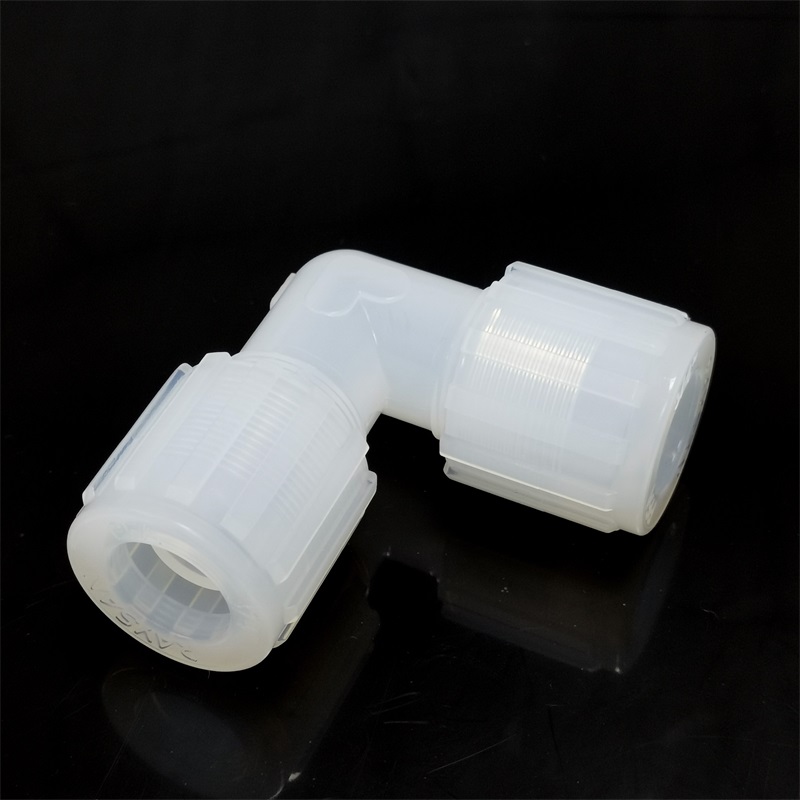

  • PFA Union Elbow - CJUE

    PFA Union Elbow - CJUE

    PFA Union Elbow - CJUE Features: it is specially used in high-purity semiconductor industry, and also suitable for ultra...

  • PFA Male Run Tee - MRTA

    PFA Male Run Tee - MRTA

    Features: it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosiv...

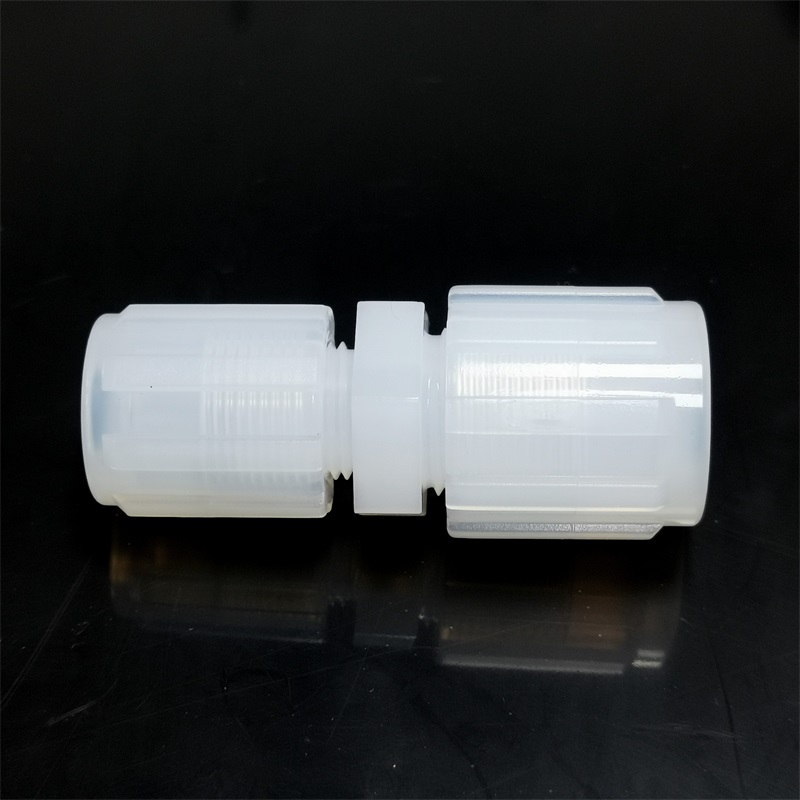

PFA Straight Union Reducer - SURA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

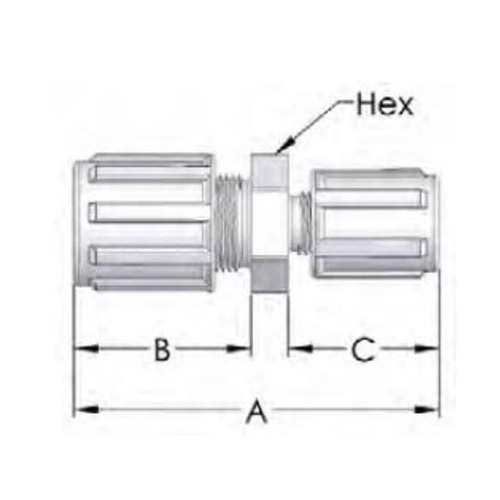

Part No. Tube OD Orifice A B C Hex
(inch) (mm) (mm) (mm) (mm) (mm)
SURA06041 3/8"*1/4" 3.81mm 69.09mm 32.26mm 29.46mm 17.46mm
SURA08041 1/2"*1/4" 3.81mm 71.63mm 34.54mm 29.46mm 23.81mm
SURA08061 1/2"*3/8" 6.35mm 74.17mm 34.54mm 32.26mm 23.81mm
SURA12041 3/4"*1/4" 3.81mm 75.18mm 38.61mm 29.46mm 30.16mm
SURA12061 3/4"*3/8" 6.35mm 77.98mm 38.61mm 32.26mm 30.16mm
SURA12081 3/4"*1/2" 9.65mm 80.52mm 38.61mm 34.54mm 30.16mm
SURA16081 1"*1/2" 9.65mm 85.85mm 43.91mm 34.54mm 36.51mm
SURA16121 1"*3/4" 16.76mm 89.66mm 43.91mm 34.54mm 36.51mm
