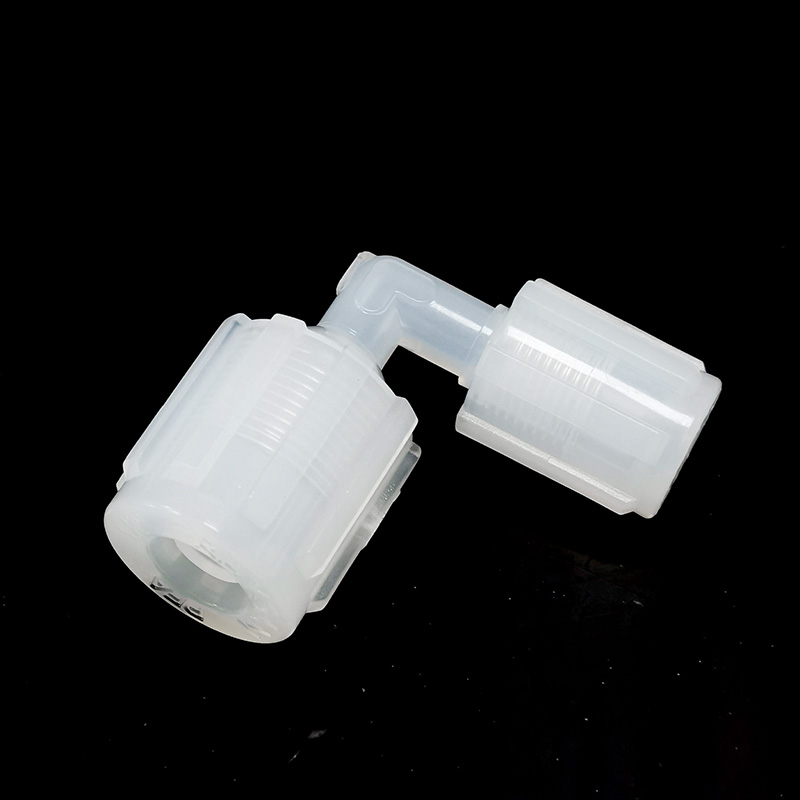

PFA Union Elbow Reducer - UERA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

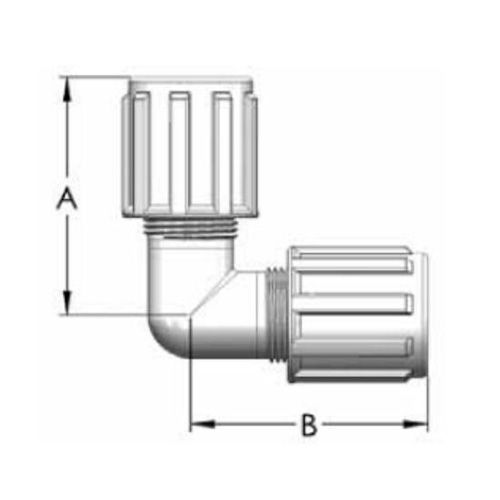

Part No. Tube OD Orifice A B
(inch) (mm) (mm) (mm)
UERA06041 3/8" 1/4" 3.81mm 44.70mm 42.16mm
UERA08041 1/4"*1/2" 3.81mm 47.50mm 42.16mm
UERA08061 1/2" 3/8"  6.35mm 44.70mm 47.50mm
UERA12041 3/4" 1/4"  3.81mm 56.39mm 42.16mm
UERA12061 3/4" 3/8"  6.35mm 56.39mm 44.70mm
UERA12081 3/4" 1/2"  9.65mm 56.39mm 47.50mm
UERA16081 1"*1/2" 9.65mm 68.58mm 47.50mm
UERA16121 1"*3/4" 16.00mm 68.58mm 56.39mm
