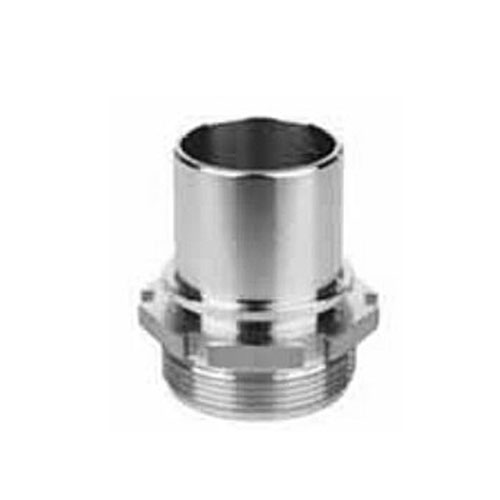

TYPE GA - Male threaded with smooth hose shank

TYPE GA - Male threaded with smooth hose shank

  • TYPE DFT - DIN Femal...

    TYPE DFT - DIN Female fitting with toothed hose shank without nut

    Female fitting with toothed hose shank without nutFitting standard: DIN11851Other materials are avai...

  • TYPE FLT - Fixed fla...

    TYPE FLT - Fixed flange with toothed hose shank

    Fixed flange with toothed hose shank for connect with another hose closely, no easy to drop.Other fl...

Male threaded with smooth hose shank

Fittings standard: EN14420-5/DIN2817.
Assembly: safety clamp
Other threads are available.
Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Thread SW Weight
mm mm Kg/pcs
GA013S6 SS316 1/2" 13 G1/2 22 0.07
GA019S6 SS316 3/4" 19 G3/4 27 0.10
GA025S6 SS316 1" 25 G1 36 0.15
GA032S6 SS316 1-1/4" 32 G1-1/4 46 0.21
GA038S6 SS316 1-1/2" 38 G1-1/2 55 0.29
GA050S6 SS316 2" 50 G2 65 0.43
GA063S6 SS316 2-1/2" 63 G2-1/2 85 0.69
GA065S6 SS316 2-1/2" 65 G2-1/2 85 0.69
GA075S6 SS316 3" 75 G3 100 0.91
GA080S6 SS316 3" 80 G3 100 1.10
GA100S6 SS316 4" 100 G4 125 1.76
