Camlock-C, Type C - Stainless steel quick coupling camlock for hose fitting

Camlock-C, Type C - Stainless steel quick coupling camlock for hose fitting

  • TYPE ES - Hose Fittings

    TYPE ES - Hose Fittings

    Fittings standard: DIN 2828.Assembly: safety clamp.Other materials are available.Remark: Can be customized.

  • TYPE FL - Hose Fittings

    TYPE FL - Hose Fittings

    Shank standard: EN 14420-2 / DIN 2817.Assembly: safety clamp.Other flange standards are available.Other materials are av...

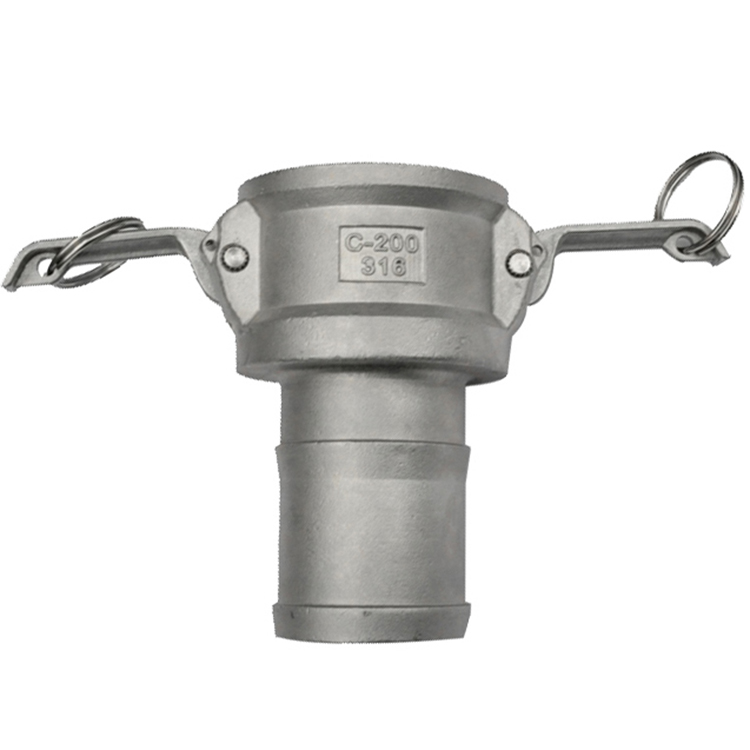

Camlock type C

Fittings standard: A-A-59326/DIN 2828.

Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Seal Arms QTY
mm
C013S6 SS316 1/2" 13 NBR 1
C019S6 SS316 3/4" 19 NBR 2
C025S6 SS316 1" 25 NBR 2
C032S6 SS316 1-1/4" 32 NBR 2
C038S6 SS316 1-1/2" 38 NBR 2
C051S6 SS316 2" 50 NBR 2
C064S6 SS316 2-1/2" 63 NBR 2
C076S6 SS316 3" 76 NBR 2
C102S6 SS316 4" 102 NBR 2
C127S6 SS316 5" 127 NBR 2
C152S6 SS316 6" 152 NBR 2
