PFA Straight Union - SUA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

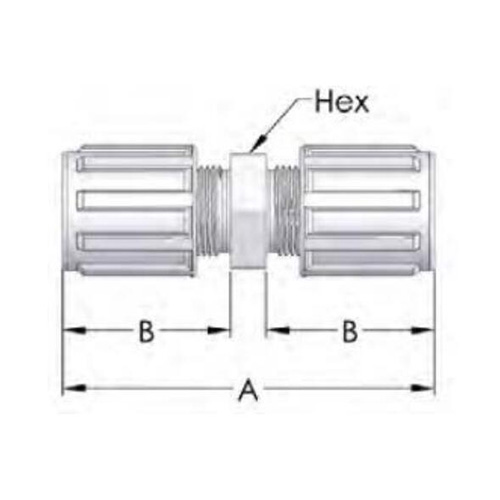

Part No. Tube OD Orifice A B HEX
(inch) (mm) (mm) (mm) (mm)
SUA041 1/4" 3.81mm 66.55mm 29.46mm 17.46mm
SUA061 3/8" 6.35mm 71.88mm 32.26mm 20.64mm
SUA081 1/2"* 9.65mm 76.71mm 34.54mm 23.81mm
SUA121 3/4" 16.00mm 84.33mm 38.61mm 30.16mm
SUA161 1" 22.35mm 94.49mm 43.94mm 36.51mm
