PFA 90 Degree Union Elbow - UEA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

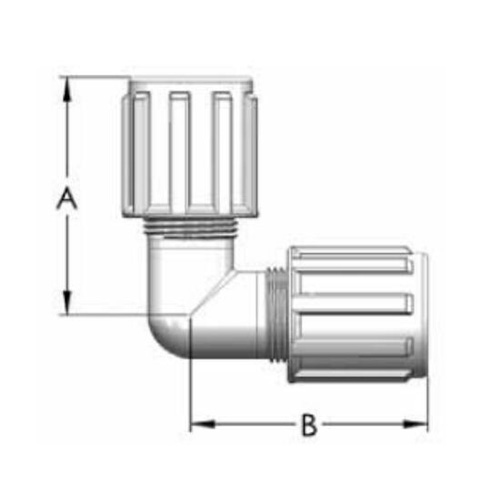

Part No. Tube OD Orifice A B
(inch) (mm) (mm) (mm)
UEA041 1/4" 3.81mm 42.16mm 42.16mm
UEA061 3/8" 6.35mm 44.70mm 44.70mm
UEA081 1/2"* 9.65mm 47.50mm 47.50mm
UEA121 3/4" 16.00mm 56.39mm 56.39mm
UEA161 1" 22.10mm 68.58mm 68.58mm
