TYPE TCGS-Stainless Steel Braid Cover Convoluted PTFE Tube(glass fiber reinforced)

TYPE TCGS-Stainless Steel Braid Cover Convoluted PTFE Tube(glass fiber reinforced)

TYPE TCGS-

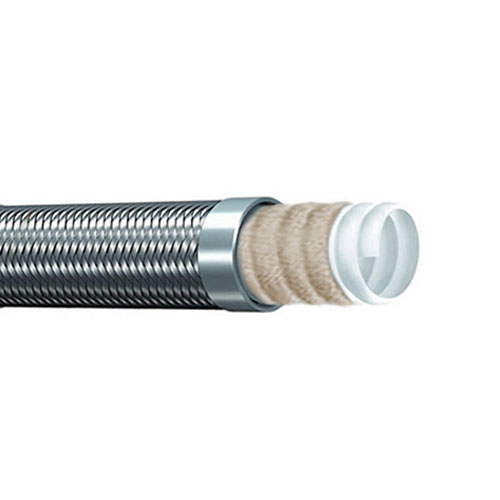

Stainless Steel Braid Cover Convoluted PTFE Tube(glass fiber reinforced)

Construction: Type TCGS is manufactured from convoluted PTFE tube, glass fiber reinforced, with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on.
Virgin and anti-static liners are available.
Certification: FDA

Part no. ID OD Tube Wall thickness Bending
radius
Work pressure Bursting pressure
in. mm mm mm mm bar bar
TCGS010 3/8" 9.5 15.9 0.75 20 110 440
TCGS013 1/2" 12.7 18.9 0.75 30 100 400
TCGS016 5/8" 15.9 22.7 0.75 60 85 340
TCGS019 3/4" 19 26.2 0.90 60 80 320
TCGS025 1" 25.4 32.2 1.00 70 60 240
TCGS032 1-1/4" 32 42.9 1.00 95 45 180
TCGS038 1-1/2" 38 48.2 1.00 130 35 140
TCGS051 2" 50.8 61.7 1.10 170 25 100
