TYPE CC - Female camlock for composite hose

TYPE CC - Female camlock for composite hose

  • TYPE SFNT - SMS Fema...

    TYPE SFNT - SMS Female fitting with toothed hose shank with nut

    Female fitting with toothed hose shank with nutFitting standard: SMSNut material: SS304Other materia...

  • TYPE ES - Hose Fitti...

    TYPE ES - Hose Fittings

    Fittings standard: DIN 2828.Assembly: safety clamp.Other materials are available.Remark: Can be cust...

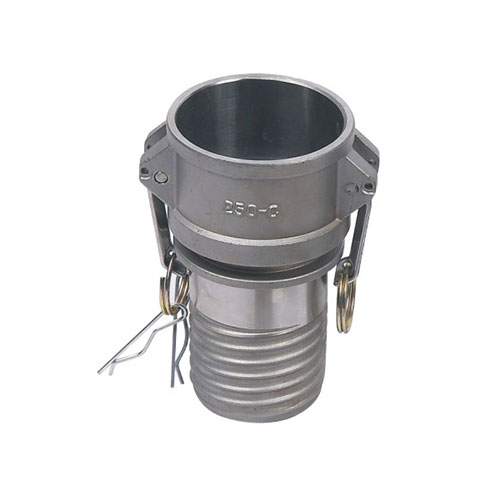

Female camlock for composite hose.
CAMLOCK standard: A-A-59326/DIN 2828
Other threads are available.

Remark: Can be customized.

Part no. Material Size For hose Seal
mm
CC019S6 SS316 3/4" 19 NBR
CC025S6 SS316 1" 25 NBR
CC032S6 SS316 1-1/4" 32 NBR
CC038S6 SS316 1-1/2" 38 NBR
CC051S6 SS316 2" 51 NBR
CC064S6 SS316 2-1/2" 64 NBR
CC076S6 SS316 3" 76 NBR
CC102S6 SS316 4" 102 NBR
CC152S6 SS316 6" 152 NBR
