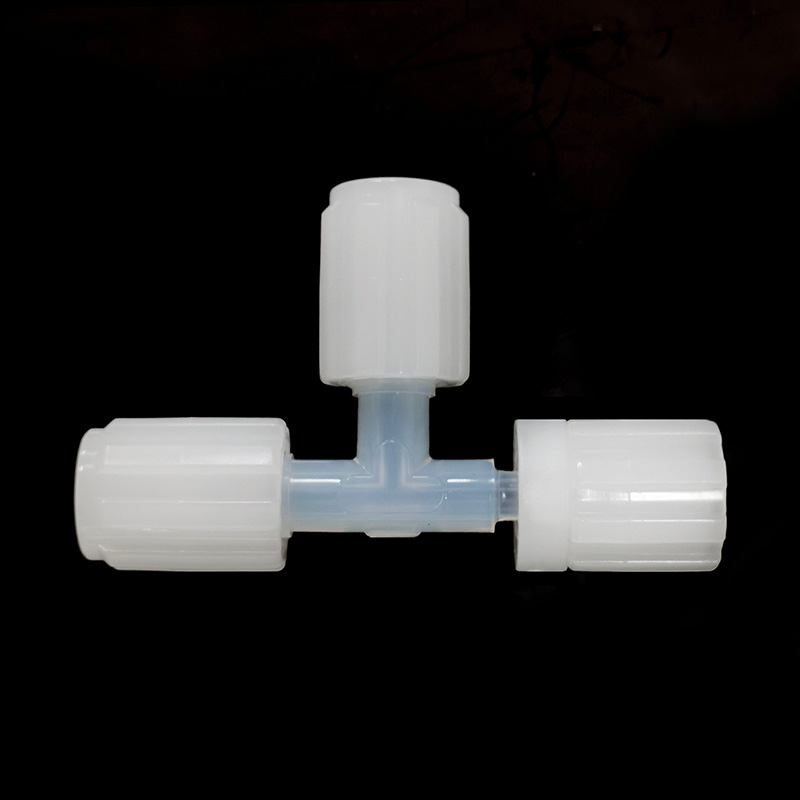

PFA Run Tee (Space saving at one end) - RTS1A

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

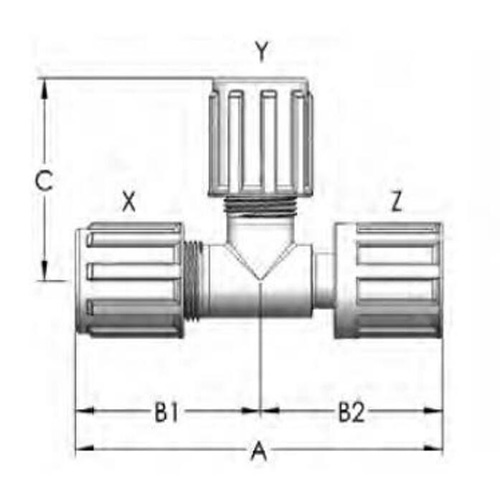

Part No. X Y Z (Space Saving) Orifice A B1 B2 C
(inch) (inch) (inch) (mm) (mm) (mm) (mm) (mm)
RTS1A040404S1 1/4" 1/4" 1/4" 3.81mm 83.82mm 42.16mm 41.66mm 42.16mm
RTS1A040808S1 1/4" 1/2" 1/2" 3.81mm 88.90mm 42.16mm 46.74mm 47.50mm
RTS1A060406S1 3/8" 1/4" 3/8" 3.81mm 88.65mm 44.70mm 43.94mm 42.16mm
RTS1A060606S1 3/8" 3/8" 3/8" 6.35mm 88.65mm 44.70mm 43.94mm 44.70mm
RTS1A060608S1 3/8" 3/8" 1/2" 6.35mm 91.44mm 44.70mm 46.74mm 44.70mm
RTS1A060808S1 3/8" 1/2" 1/2" 6.35mm 91.44mm 44.70mm 46.74mm 47.50mm
RTS1A061212S1 3/8" 3/4" 3/4" 6.35mm 98.81mm 44.70mm 54.10mm 56.39mm
RTS1A080408S1 1/2" 1/4" 1/2" 3.81mm 94.23mm 47.50mm 46.74mm 42.16mm
RTS1A080606S1 1/2" 3/8" 3/8" 6.35mm 91.44mm 47.50mm 43.94mm 44.70mm
RTS1A080608S1 1/2" 3/8" 1/2" 6.35mm 94.23mm 47.50mm 46.74mm 44.70mm
RTS1A080806S1 1/2" 1/2" 3/8" 6.35mm 91.44mm 47.50mm 43.94mm 47.50mm
RTS1A080808S1 1/2" 1/2" 1/2" 9.65mm 94.23mm 47.50mm 43.94mm 47.50mm
RTS1A080812S1 1/2" 1/2" 3/4" 9.65mm 101.60mm 47.50mm 54.10mm 47.50mm
RTS1A120412S1 3/4" 1/4" 3/4" 3.81mm 110.49mm 56.39mm 54.10mm 42.16mm
RTS1A120612S1 3/4" 3/8" 3/4" 6.35mm 110.49mm 56.39mm 54.10mm 44.70mm
RTS1A120812S1 3/4" 1/2" 3/4" 9.65mm 110.49mm 56.39mm 54.10mm 47.50mm
RTS1A121208S1 3/4" 3/4" 1/2" 9.65mm 103.12mm 56.39mm 46.74mm 56.39mm
RTS1A121212S1 3/4" 3/4" 3/4" 16.00mm 110.49mm 56.39mm 54.10mm 56.39mm
RTS1A160416S1 1" 1/4" 1" 16.00mm 138.18mm 68.58mm 69.60mm 51.31mm
RTS1A160616S1 1" 3/8" 1" 6.35mm 138.18mm 68.58mm 69.60mm 54.10mm
RTS1A160816S1 1" 1/2" 1" 9.65mm 138.18mm 68.58mm 69.60mm 57.40mm
RTS1A161216S1 1" 3/4" 1" 16.00mm 138.18mm 68.58mm 69.60mm 56.39mm
RTS1A161612S1 1" 1" 3/4" 16.00mm 125.48mm 68.58mm 69.60mm 68.58mm
RTS1A161616S1 1" 1" 1" 22.35mm 138.18mm 68.58mm 69.60mm 68.58mm
