PFA Union Tee - UTA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

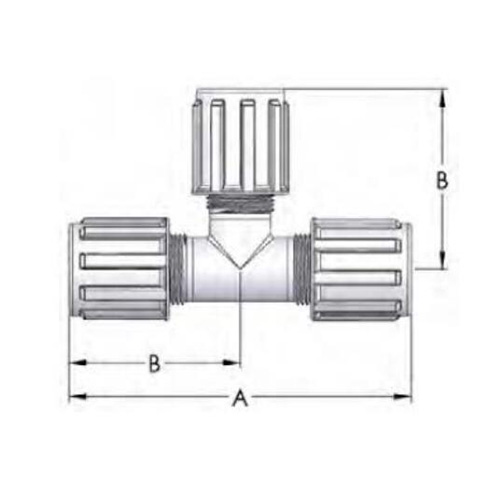

Part No. Tube OD Orifice A B
(inch) (mm) (mm) (mm)
UTA041 1/4" 3.81mm 84.33mm 42.16mm
UTA061 3/8" 6.35mm 89.41mm 44.70mm
UTA081 1/2" 9.65mm 95.00mm 47.50mm
UTA121 3/4" 16.00mm 112.78mm 56.39mm
UTA161 1" 22.35mm 137.16mm 68.58mm
