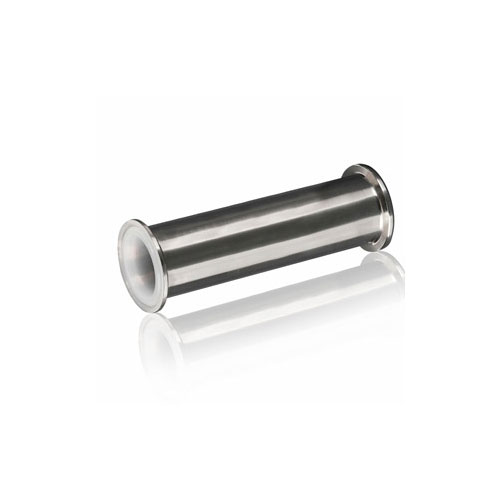

TYPE PLPTC - PFA lined pipe with tri-clamp fitting

TYPE PLPTC - PFA lined pipe with tri-clamp fitting

  • TYPE PLSDC - PFA lin...

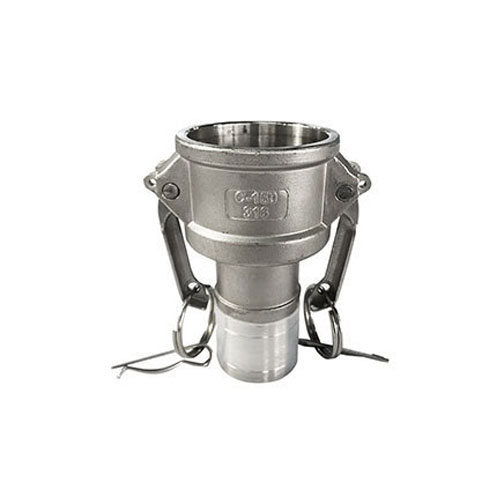

    TYPE PLSDC - PFA lined CAMLOCK DC with safety arms

    CAMLOCK DC WITH 2 automatic safety lock CAM armsFitting standard: A-A-59326/DIN 2828FEP or PTFE line...

  • TYPE PLDV - Sanitary...

    TYPE PLDV - Sanitary PFA Lined Diaphragm Valve

    Sanitary PFA lined Tri-Clamp diaphragm valveThis valve features a static sealing design with non-abr...

Fitting standard: 3A.
FEP or PTFE liners are available.
Virgin and anti-static liners are available.

Remark: Can be customized.

Part no. Size A B L Liner Thickness
inch mm mm mm mm
PLPTC025S4 1" 50.5 18.1 0-2000 3
PLPTC032S4 1-1/4" 50.5 27.75 0-2000 3
PLPTC040S4 1-1/2" 50.5 30.8 0-2000 3
PLPTC050S4 2" 64 43.5 0-2000 3
PLPTC065S4 2-1/2" 77.5 56.2 0-2000 3
PLPTC080S4 3" 91 68.9 0-2000 3
PLPTC100S4 4" 119 93.4 0-2000 3
