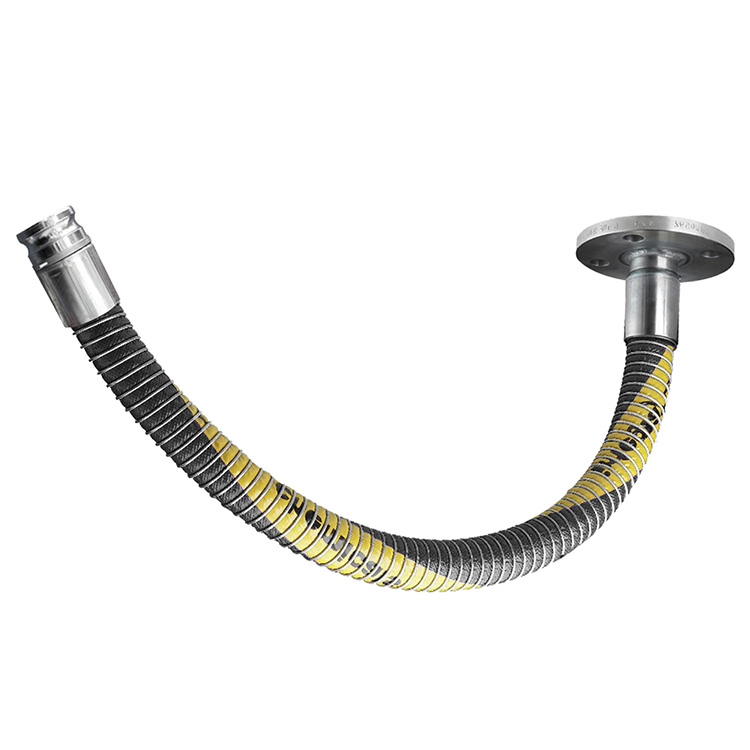

TYPE LT-SSC
Low Temperature Resistant Composite Hose

Construction:
Internal helix: Stainless steel
External helix: Stainless steel
Inner tube: Synthetic materials
Temp. Range: -190°C to + 60°C
Application: For suction and discharge use in low temperature environment or used in transporting low product. The hose construction is exceptionally lightweight and flexible for ease of handling yet remains robust, hard-wearing and cost effective. Electrically resistant to less than 10 ohms.
Standard/Approval: BS EN13765:2003 and BS5842:1980(1996)
Length: 3/4” up to 4” 40m, 5” up to 6” 20m
LT-SGC also can be available.
Part No. ID Working Pressure Bursting Pressure Length
in. mm bar bar m
LT-SSC025 1" 25 25 100 40
LT-SSC038 1-1/2" 38 25 100 40
LT-SSC051 2" 51 25 100 40
LT-SSC065 2-1/2" 65 25 100 40
LT-SSC076 3" 76 25 100 40
LT-SSC102 4" 102 25 100 40
LT-SSC152 6" 152 25 100 40
Remark: Other working Pressure are available.
