TYPE UCSD - Conductive UPE Chemical Hose

TYPE UCSD - Conductive UPE Chemical Hose

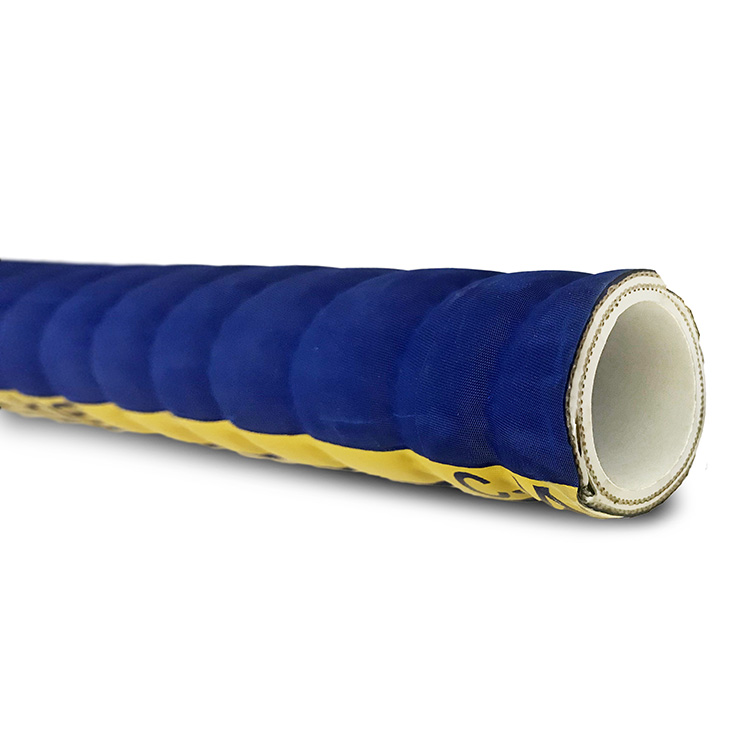

Conductive UPE Chemical Hose

TYPE UCSD

Applications:
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.
Construction:
Tube: Conductive black UHMWPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: High tensile textile cords with embedded steel helix wire, antistatic wire.
Cover: Corrugated black or blue EPDM compound. - abrasion and ozone resistant
Temperature range: -40 °C~+120 °C (-40 °F +248 °F)
Standard/Approval:
FDA 21 CFR 177.2600.

Part no.  ID  OD Bending radius Work pressure Length
inch mm mm mm psi bar m
UCSD019 3/4" 19.05 32.0 89 200 13.8 61
UCSD025 1" 25.4 37.3 100 200 13.8 61
UCSD032 1-1/4" 31.8 45.0 130 200 13.8 61
UCSD038 1-1/2" 38.1 52.0 154 200 13.8 61
UCSD051 2" 50.8 66.3 208 200 13.8 61
UCSD063 2-1/2" 63.5 76.1 252 200 13.8 61
UCSD076 3" 76.2 96.2 305 200 13.8 61
UCSD102 4" 101.6 120.6 407 200 13.8 61
