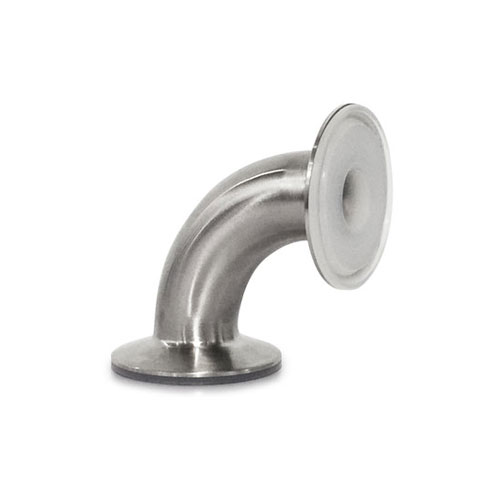

TYPE PL90ETC - PFA lined 90 degree tri-clamp fitting

TYPE PL90ETC - PFA lined 90 degree tri-clamp fitting

  • TYPE PLGI - PFA line...

    TYPE PLGI - PFA lined female threaded with smooth hose shank

    Female threaded with smooth hose shankFitting standard: EN 14420-8/DIN 2817Assembly: safety clampFEP...

  • TYPE PALSLT - Antist...

    TYPE PALSLT - Antistatic PFA lined swivel flange with toothed hose shank

    TYPE PALSLTAntistatic PFA lined swivel flange with toothed hose shankSwivel flange with toothed hose...

Fitting standard: 3A.
FEP or PTFE liners are available.
Virgin and anti-static liners are available.

Remark: Can be customized.

Part no. Fitting material Size A(mm) R(mm) L(mm)
PL90ETC025S4 SS304+PFA 1" 50.5 38.1 50.8
PL90ETC040S4 SS304+PFA 1-1/2" 50.5 57.2 69.9
PL90ETC050S4 SS304+PFA 2" 64 76.2 88.9
PL90ETC065S4 SS304+PFA 2-1/2" 77.5 95.25 107.95
PL90ETC080S4 SS304+PFA 3" 91 114.3 127
PL90ETC100S4 SS304+PFA 4" 106 152.4 168.2
