CJan Fluid Technology Co., Ltd.
TYPE PLGA - FEP or PFA Lined Fittings

TYPE PLGA - FEP or PFA Lined Fittings

  • TYPE PLC - PFA lined CAMLOCK C

    TYPE PLC - PFA lined CAMLOCK C

    Fitting standard: A-A-59326/DIN 2828.Assembly: safety clampFEP or PTFE liners are available.Virgin and anti-static liner...

  • TYPE PLDP - PFA lined CAMLOCK DP

    TYPE PLDP - PFA lined CAMLOCK DP

    Fitting standard: A-A-59326/DIN 2828.FEP or PTFE liners are available.Virgin and anti-static liners are available.Remark...

Male threaded with smooth hose shank
Fitting standard: EN 14420-8/DIN 2817
Assembly: safety clamp
FEP or PTFE liners are available.
Virgin and anti-static liners are available.

Remark: Can be customized.

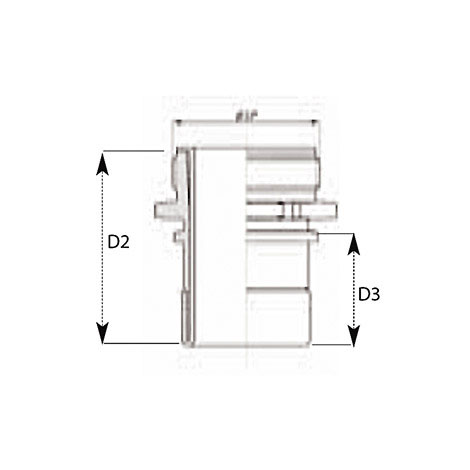

Part no. Fitting material Size For hose Thread D2 min D3 min
mm mm mm
PLGA019S6 SS316+PFA 3/4" 19 G3/4 62.0 34.0
PLGA025S6 SS316+PFA 1" 25 G1 63.0 34.0
PLGA032S6 SS316+PFA 1-1/4" 32 G1-1/4 63.5 34.0
PLGA038S6 SS316+PFA 1-1/2" 38 G1-1/2 66.5 34.0
PLGA050S6 SS316+PFA 2" 50 G2 75.5 40.0
PLGA063S6 SS316+PFA 2-1/2" 63 G2-1/2 94.5 52.0
PLGA075S6 SS316+PFA 3" 75 G3 97.5 56.0
PLGA100S6 SS316+PFA 4" 100 G4 131.0 80.5
