GLOBALHow Coolant Compatibility Affects Liquid Cooling Hose Selection for AI Data Centers
In a liquid-cooled AI data center, the coolant does not simply pass through a hose. It remains in contact with the hose's inner layer throughout the operating life of the cooling system.
That makes coolant compatibility an important part of hose selection.
A hose can have suitable pressure and temperature ratings and still require additional evaluation if its wetted material is not appropriate for the coolant being used.
For the fundamentals of hose sizing, see How to Select the Right Liquid Cooling Hose Size for AI Data Centers.
1. What Does Coolant Compatibility Mean?
Coolant compatibility describes whether the materials in contact with the coolant can maintain their required physical and functional properties during service.
For a liquid cooling hose, the most important area is normally the inner fluid-contact layer.
The evaluation should also consider fittings, seals, UQDs and other wetted components in the complete assembly.
Compatibility is therefore an assembly-level consideration rather than a property of the hose name alone.
2. Why Coolant Compatibility Matters in AI Cooling
AI data center cooling systems are designed for continuous operation and may operate for long periods under relatively stable thermal loads.
A hose is expected to maintain its mechanical integrity while repeatedly exposed to coolant, temperature changes and system pressure.
If material compatibility is not properly evaluated, the consequences may include changes in material properties, leakage risk or shortened service life.
For this reason, coolant compatibility belongs in the initial engineering specification.
3. Start With the Actual Coolant
The first step is to identify the coolant used by the cooling system.
Do not assume that all water-based coolants behave identically.
The actual formulation may contain additives intended to control corrosion, biological growth or other operating characteristics.
Those additives can change the chemical environment experienced by the hose.
4. Water and Water-Based Coolants
Water-based cooling systems are widely used because water has favorable heat-transfer characteristics.
However, the coolant used in a commercial cooling loop may not be pure water.
It may contain additives or a mixture of different components.
Hose selection should therefore be based on the actual operating fluid rather than simply describing the coolant as "water."
5. Glycol-Based Coolants Require Specific Evaluation
Some cooling systems use water-glycol mixtures to provide additional protection against freezing and other operating conditions.
The concentration of glycol can affect fluid properties such as viscosity.
From a hose-selection perspective, this means that both chemical compatibility and hydraulic performance should be considered.
The same hose may experience different pressure-drop behavior with different coolant formulations.
This connects coolant selection directly with the pressure-drop considerations discussed in Liquid Cooling Hose Pressure Drop: How to Calculate and Control It in AI Data Centers.
6. Coolant Temperature Changes the Compatibility Environment
Compatibility should be evaluated across the actual temperature range rather than at room temperature alone.
Temperature can influence both the coolant and the hose material.
A material that performs well under one condition should therefore be evaluated again when the operating temperature is significantly different.
7. The Inner Layer Is Particularly Important
The inner layer is directly exposed to the coolant.
Its material selection can therefore influence chemical resistance, permeation behavior and long-term fluid-contact performance.
The reinforcement layer has a different primary function. It contributes to mechanical strength and pressure capability.
The outer layer protects the hose from the surrounding environment.

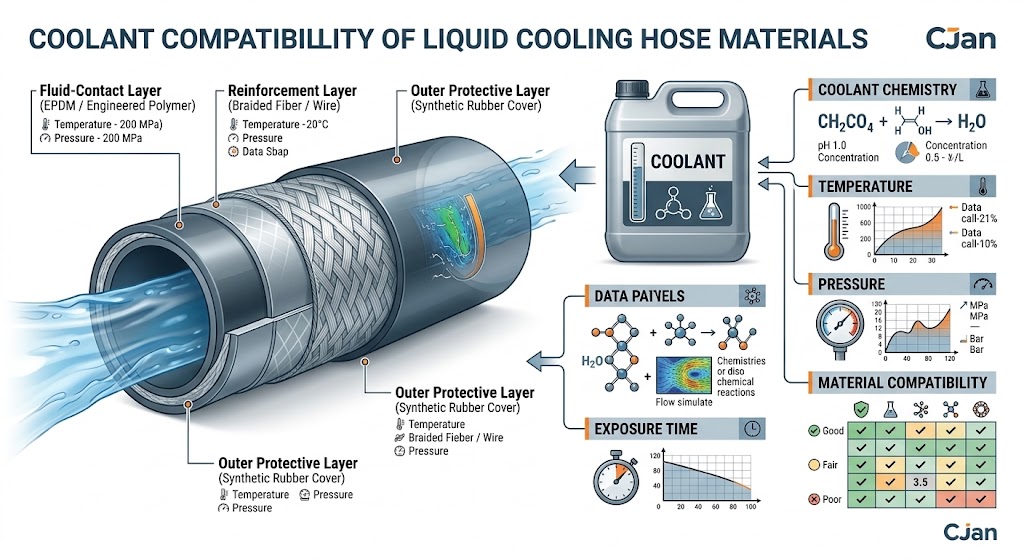

A typical construction can be represented as:
8. Chemical Compatibility Is Not the Same as Temperature Resistance
These two properties should not be treated as interchangeable.
A hose material may tolerate a particular temperature range while requiring separate evaluation for chemical exposure.
Conversely, a material may have good chemical resistance but still need to be checked against the actual thermal and pressure conditions.
A complete hose specification should therefore consider both.
9. What Can Happen When Compatibility Is Poor?
Incompatible exposure can change the properties of a polymer or elastomer over time.
Depending on the material and fluid combination, possible concerns can include:
- Swelling
- Changes in hardness
- Changes in flexibility
- Loss of mechanical properties
- Permeation
- Surface degradation
The exact behavior depends on the material, coolant formulation, temperature and duration of exposure.
Therefore, these effects should be verified rather than assumed.
10. Why Long-Term Exposure Matters
A hose used in an AI cooling system may remain in service for an extended period.
A short laboratory exposure does not necessarily reproduce the complete service environment.
Long-term evaluation can be useful when the application involves continuous coolant circulation, elevated temperature or a specialized coolant formulation.
Where reliability requirements are high, material compatibility should be considered together with validation testing.
11. Coolant Compatibility and Hose Permeation
Permeation describes the movement of fluid or fluid components through a material at the molecular level.
The significance of permeation depends strongly on the application and coolant.
In some cooling systems, the main concern may be maintaining fluid containment. In other systems, coolant purity or system cleanliness may be more important.
The appropriate evaluation should therefore reflect the actual cooling architecture.
12. Compatibility Should Include Seals and Fittings
Selecting a compatible hose material is not enough if the connection components use materials that are unsuitable for the same coolant.
A complete liquid cooling assembly can contain:
- Hose inner layer
- Fittings
- O-rings or seals
- UQDs
- Manifold components
- Cold plate connections
All wetted materials should be considered during system qualification.
13. Hose Compatibility and UQD Selection
UQDs are frequently used where components need to be disconnected during maintenance.
The UQD therefore creates another material interface within the coolant path.
The hose, fitting and UQD should be evaluated as a connected assembly.
This approach avoids treating the hose as an isolated component.
14. Compatibility and Hydraulic Performance Are Connected
Coolant compatibility is primarily a material-selection issue, but the coolant itself also affects hydraulic performance.
Changes in viscosity can affect pressure drop and pump requirements.
This means coolant selection influences both:
- Material compatibility
- Hydraulic performance
Both should be included in the cooling-system design process.
15. Coolant Compatibility and Hose Size
Hose size is normally determined from flow and hydraulic requirements, while material selection is driven partly by coolant compatibility.
These decisions should nevertheless be made together.
A hose with the correct internal diameter is not a suitable choice if its wetted material has not been qualified for the coolant.
For the sizing process itself, see How to Select the Right Liquid Cooling Hose Size for AI Data Centers.
16. A Practical Coolant Compatibility Matrix
A useful engineering workflow is to create a compatibility matrix before final hose selection.
| Parameter | What to Confirm |
|---|---|
| Coolant | Exact fluid or formulation |
| Temperature | Normal and maximum operating range |
| Exposure | Continuous or intermittent contact |
| Inner Layer | Material compatibility |
| Seals | Compatibility with coolant |
| UQD | Wetted material compatibility |
| Validation | Testing requirements |
17. Do Not Select Hose Material From Temperature Alone
Temperature ratings are useful for eliminating unsuitable materials, but they are not sufficient for final selection.
For example, two materials may both tolerate the required temperature range while having different chemical resistance characteristics.
The selection process should therefore combine:
- Temperature capability
- Coolant compatibility
- Pressure capability
- Flexibility
- Permeation requirements
- Service environment
18. Consider the Complete Operating Envelope
Hose selection should consider the conditions the assembly will actually experience.
This is more reliable than selecting material from a single specification such as maximum temperature.
19. Compatibility Testing Can Reduce Uncertainty
When the coolant formulation is unusual, newly developed or commercially sensitive, direct material testing can provide useful evidence.
Possible evaluation methods may include:
- Immersion exposure
- Dimensional inspection
- Hardness comparison
- Visual inspection
- Pressure testing
- Flow testing
- Longer-duration circulation testing
The appropriate test method depends on the application and qualification requirements.
20. Why Application Testing Is Valuable
Published compatibility charts can provide useful initial guidance, but actual system conditions may be more complex.
The coolant may contain additives, the operating temperature may fluctuate, and the hose may be exposed to pressure cycling and repeated bending.
Where reliability is critical, application-specific validation can provide stronger evidence than relying on a generic compatibility statement alone.
21. Questions to Ask a Hose Supplier
When discussing a liquid cooling hose application with a supplier, the following information is useful:
- What coolant is being used?
- What is the coolant concentration?
- What is the operating temperature?
- What is the maximum temperature?
- What is the operating pressure?
- What is the required flow rate?
- How long will the hose remain in service?
- Are there special cleanliness requirements?
- What fitting and UQD are required?
Providing these parameters allows the hose construction to be evaluated against the actual application rather than a generic specification.
22. CJAN Liquid Cooling Hose Options
CJAN provides liquid cooling hose configurations that can be evaluated according to coolant, temperature, pressure, flow and installation requirements.
The current CJAN LCH Liquid Cooling Hose is part of the liquid cooling product range.
Additional configurations include LCH-SD and LCH-SDS.
Final selection should be based on the actual operating conditions and required connection configuration.
23. Coolant Compatibility Should Be Evaluated Before Mass Deployment
Changing the hose after a cooling system has already been deployed can be considerably more difficult than validating the material during the design stage.
A better process is:
This sequence can reduce the risk of discovering material issues after installation.
24. Five Common Coolant Compatibility Mistakes
Mistake 1: Treating All Water-Based Coolants as the Same
Coolant formulations can contain different additives and concentrations.
Mistake 2: Checking Only Temperature Resistance
Temperature capability does not automatically establish chemical compatibility.
Mistake 3: Checking Only the Hose
Fittings, seals and UQDs also contact the coolant.
Mistake 4: Ignoring Long-Term Exposure
Short-duration exposure may not represent long-term operating conditions.
Mistake 5: Selecting Material Before Defining the Coolant
The coolant should be identified before the final wetted material is selected.
25. Coolant Compatibility Checklist
| Item | Required Action |
|---|---|
| Coolant formulation | Identify actual fluid |
| Operating temperature | Define full range |
| Operating pressure | Define normal and maximum |
| Flow rate | Define design flow |
| Inner hose layer | Evaluate compatibility |
| Fittings | Check wetted materials |
| Seals | Check compatibility |
| UQD | Check coolant-contact materials |
| Service life | Consider exposure duration |
| Validation | Define testing requirements |
Conclusion
Coolant compatibility is a fundamental part of liquid cooling hose selection for AI data centers.
The correct hose must be compatible with the actual coolant while also meeting requirements for temperature, pressure, flow, flexibility, routing and connection design.
The inner fluid-contact layer deserves particular attention, but the complete wetted assembly—including fittings, seals and UQDs—should also be evaluated.
For AI data center applications, the most reliable approach is to define the coolant and operating envelope first, then evaluate hose materials and validate the complete assembly.
CJAN's LCH, LCH-SD and LCH-SDS liquid cooling hose configurations can be evaluated according to specific application requirements.
For more information, visit the CJAN Liquid Cooling Solutions page or review the CJAN LCH Liquid Cooling Hose.
