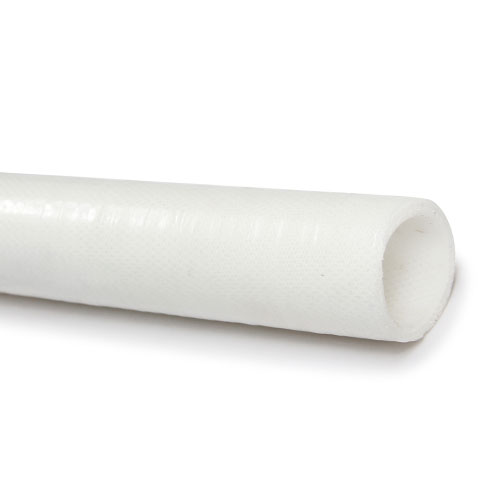

TYPE SP - 4 Layer Polyester Reinforced Silicone Hose

TYPE SP - 4 Layer Polyester Reinforced Silicone Hose

TYPE SP
4 Layer Polyester Reinforced Silicone Hose

Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.
Temp. Range: -60℃ and 200℃. (+260℃ on request)
Color:Translucent (Colored covers available)

Applications of flexible silicone hose:
For transporting liquids at a medium pressure where a closed Bending radius is not required. It is not recommended for Vacuum. Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard length is 4 or 6 meters

**PRESSURE DECREASE BY 1% FOR EVERY 1℃ ABOVE 100℃

Part no. ID OD Work pressure Bursting pressure
in. mm mm bar bar
SP006 1/4" 6.4 16.4 11.5 34.5
SP008 5/16" 7.9 18 10.5 31.5
SP010 3/8" 9.5 19.5 9.5 28.5
SP013 1/2" 12.7 22.7 8.5 25.5
SP016 5/8" 15.9 25.9 8 24
SP019 3/4" 19 29 7.5 22.5
SP022 7/8" 22 32 7 21
SP025 1" 25.4 35.4 6.5 19.5
SP032 1-1/4" 32 42 5.5 16.5
SP038 1-1/2" 38 48 5 15
SP045 1-3/4" 45 55 4.5 13.5
SP050 2" 50.8 60.8 4 12
SP063 2-1/2" 63.5 73.5 3.5 10.5
SP076 3" 76.2 86.2 2.5 7.5
SP089 3-1/2" 89 99 2 6
SP102 4" 102 112 1.7 5.1
