TYPE DMT - Hose Fittings

TYPE DMT - Hose Fittings

  • TYPE FLT - Hose Fittings

    TYPE FLT - Hose Fittings

    Fixed flange with toothed hose shank for connect with another hose closely, no easy to drop.Other flange standards are a...

  • TYPE SFN - Hose Fittings

    TYPE SFN - Hose Fittings

    Female fitting with smooth hose shank with nutFitting standard: SMSShank standard: EN14420-5/DIN2817Nut material: SS304A...

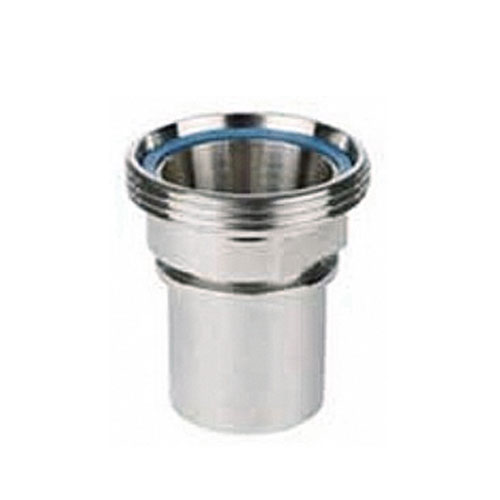

Male fitting with toothed hose shank without nut
Fitting standard: DIN11851
Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Thread Weight
mm Kg/pcs
DMT013S6L SS316L 1/2" 12.7 RD 34 x 1/8" 0.11
DMT019S6L SS316L 3/4" 19 RD 44 x 1/6" 0.19
DMT025S6L SS316L 1" 25.4 RD 52 x 1/6" 0.23
DMT032S6L SS316L 1-1/4" 32 RD 58 x 1/6" 0.28
DMT038S6L SS316L 1-1/2" 38 RD 65 x 1/6" 0.36
DMT040S6L SS316L 1-1/2" 40 RD 65 x 1/6" 0.40
DMT051S6L SS316L 2" 50.8 RD 78 x 1/6" 0.51
DMT064S6L SS316L 2-1/2" 63.5 RD 95 x 1/6" 1.10
DMT065S6L SS316L 2-1/2" 65 RD 95 x 1/6" 1.15
DMT076S6L SS316L 3" 76 RD 110 x 1/4" 1.30
DMT080S6L SS316L 3" 80 RD 110 x 1/4" 1.35
DMT100S6L SS316L 4" 100 RD 130 x 1/4" 1.84
DMT102S6L SS316L 4" 102 RD 130 x 1/4" 1.84
