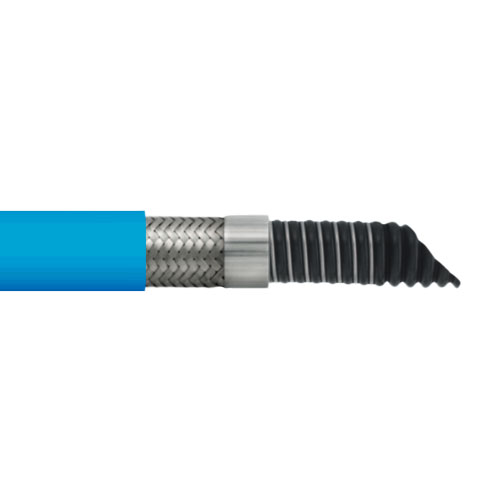

TYPE TCAWSR
Rubber Cover TCAWS
Construction: A helically convoluted antistatic PTFE (Polytetrafluorethylene) suction/pressure hose, with external vacuum wire with EPDM vulcanized high tensile stainless steel braid. The hose has very good vacuum and kink resistance.
Temp. Range: -40°C and +150°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength. EPDM vulcanized stainless steel braid ensures a high flexibility and easy cleanability. Making it ideal for Food, Bio, and Cosmetic industry.
Certification: FDA
Part no. | ID | Mini OD | Tube Wall thickness |
Bending radius |
Work pressure | Bursting pressure | |
in. | mm | mm | mm | mm | bar | bar | |
TCAWSR010 | 3/8" | 9.5 | 22.7 | 0.75 | 25 | 110 | 440 |
TCAWSR013 | 1/2" | 12.7 | 25.7 | 0.75 | 35 | 100 | 400 |
TCAWSR016 | 5/8" | 15.9 | 29.5 | 0.75 | 45 | 85 | 340 |
TCAWSR019 | 3/4" | 19 | 33 | 0.90 | 50 | 80 | 320 |
TCAWSR025 | 1" | 25.4 | 39 | 1.00 | 70 | 60 | 240 |
TCAWSR032 | 1-1/4" | 32 | 49.7 | 1.00 | 85 | 45 | 180 |
TCAWSR038 | 1-1/2" | 38 | 55 | 1.00 | 110 | 35 | 140 |
TCAWSR051 | 2" | 50.8 | 68.5 | 1.10 | 140 | 25 | 100 |
