PFA Male Run Tee - MRTA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

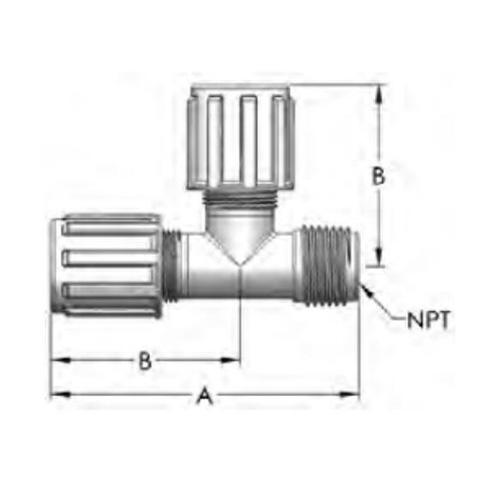

Part No. Tube OD Tube OD NPT Thread  Orifice A B
(inch) (inch) (inch) (mm) (mm) (mm)
MRTA0404021 1/4" 1/4" 1/8" 3.81mm 69.09mm 42.67mm
MRTA0404041 1/4" 1/4" 1/4" 3.81mm 69.09mm 42.67mm
MRTA0404061 1/4" 1/4" 3/8" 3.81mm 69.09mm 42.67mm
MRTA0606021 3/8" 3/8" 1/8" 4.32mm 71.88mm 44.70mm
MRTA0606041 3/8" 3/8" 1/4" 6.35mm 71.88mm 44.70mm
MRTA0606061 3/8" 3/8" 3/8" 6.35mm 71.88mm 44.70mm
MRTA0606081 3/8" 3/8" 1/2" 6.35mm 71.88mm 44.70mm
MRTA0808061 1/2" 1/2" 3/8" 9.65mm 75.18mm 47.50mm
MRTA0808081 1/2" 1/2" 1/2" 9.65mm 77.22mm 47.50mm
MRTA1212061 3/4" 3/4" 3/8" 9.65mm 87.63mm 56.39mm
MRTA1212081 3/4" 3/4" 1/2" 12.45mm 90.42mm 56.39mm
MRTA1212121 3/4" 3/4" 3/4" 16.00mm 91.19mm 56.39mm
MRTA1616121 1" 1" 3/4" 16.00mm 110.24mm 68.58mm
MRTA1616161 1" 1" 1” 22.35mm 114.30mm 68.58mm
