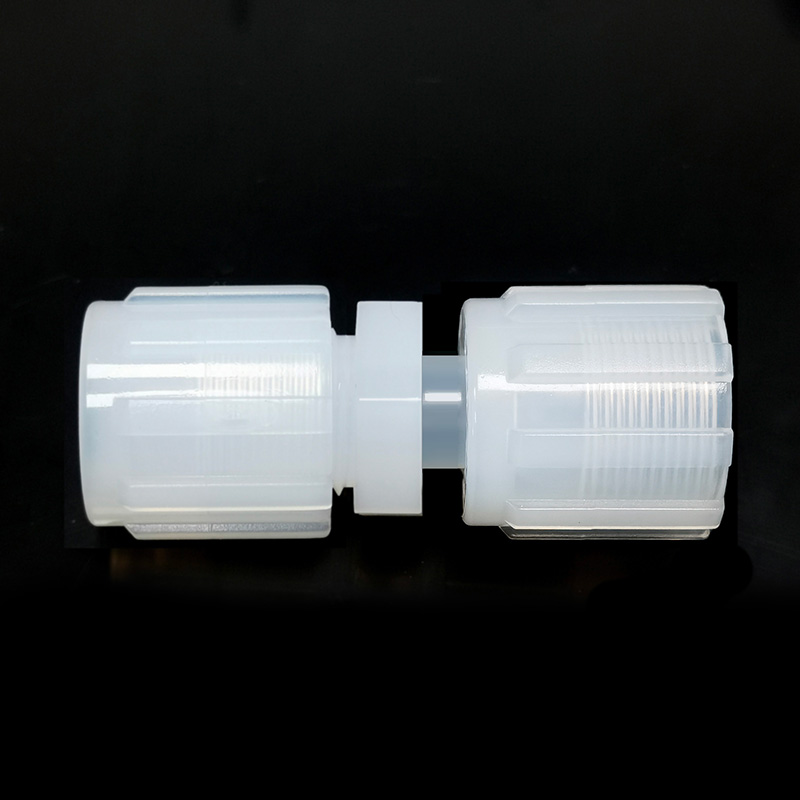

PFA Straight Union (Space Saving) - SUSA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

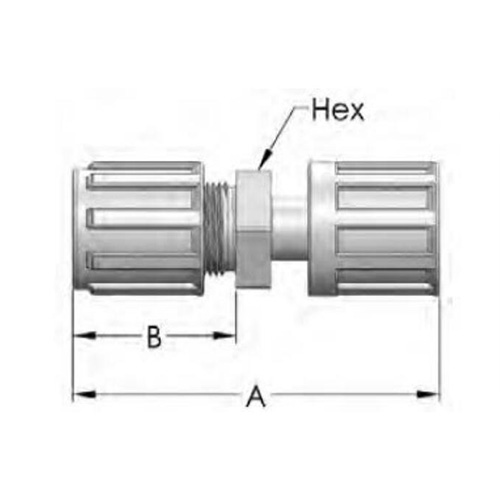

Part No. Tube OD Orifice A B
(inch) (mm) (mm) (mm)
SUSA04S1 1/4" 3.81mm 70.10mm 29.46mm
SUSA06S1 3/8" 6.35mm 74.42mm 32.26mm
SUSA08S1 1/2"* 9.65mm 77.98mm 34.54mm
SUSA12S1 3/4" 16.00mm 86.61mm 38.61mm
SUSA16S1 1" 22.35mm 102.62mm 43.94mm
