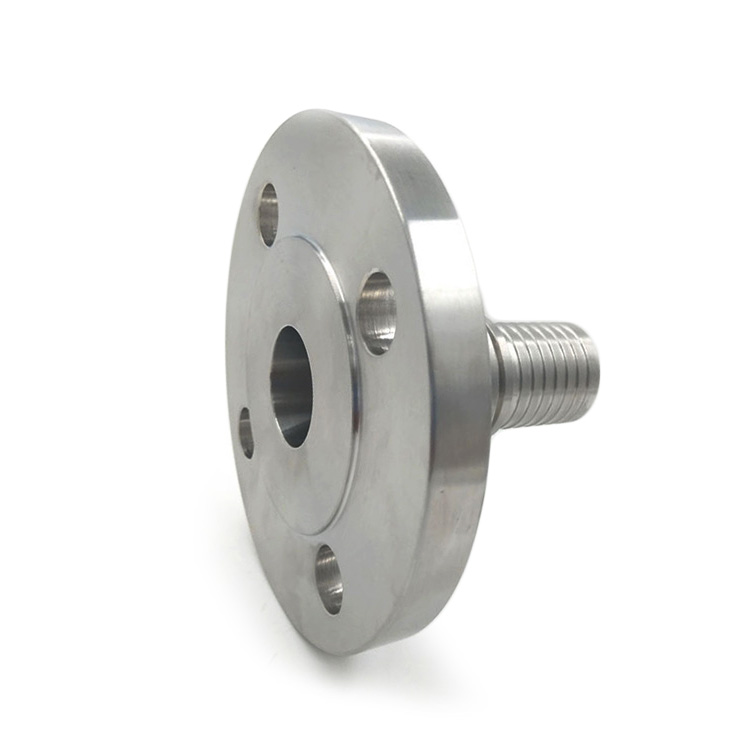

Fixed flange with toothed hose shank

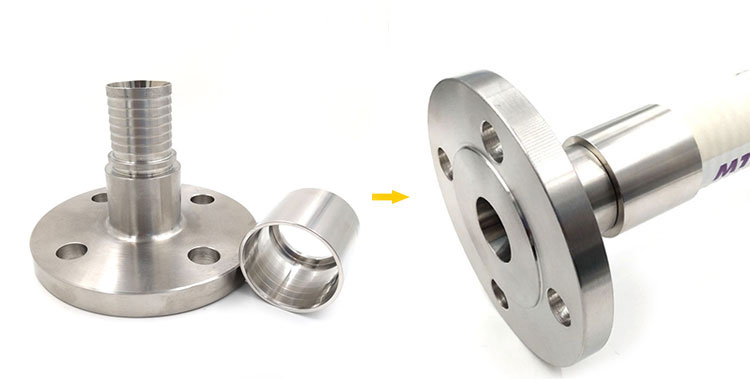

Fixed flange with toothed hose shank for connect with another hose closely, no easy to drop.
Other flange standards are available.
Other materials are available.

Remark: Can be customized.

Part no. Material Size Flange standard For hose
FLT013S6-EN16 SS316 1/2" EN PN16 12.7
FLT019S6-EN16 SS316 3/4" EN PN16 19
FLT025S6-EN16 SS316 1" EN PN16 25.4
FLT032S6-EN16 SS316 1-1/4" EN PN16 32
FLT038S6-EN16 SS316 1-1/2" EN PN16 38
FLT040S6-EN16 SS316 1-1/2" EN PN16 40
FLT051S6-EN16 SS316 2" EN PN16 50.8
FLT064S6-EN16 SS316 2-1/2" EN PN16 63.5
FLT065S6-EN16 SS316 2-1/2" EN PN16 65
FLT076S6-EN16 SS316 3" EN PN16 76
FLT080S6-EN16 SS316 3" EN PN16 80
FLT102S6-EN16 SS316 4" EN PN16 102
FLT127S6-EN16 SS316 5" EN PN16 127
FLT152S6-EN16 SS316 6" EN PN16 152
