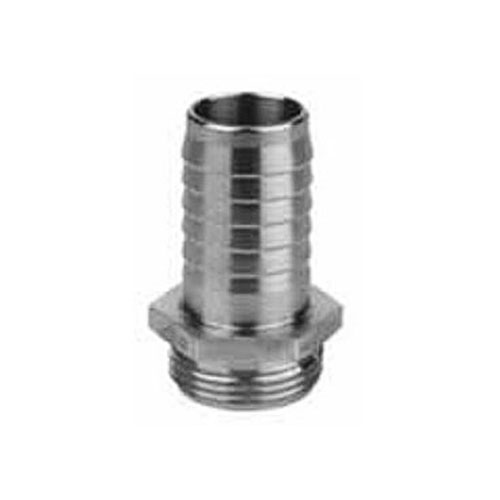

TYPE GAT - Male threaded with toothed hose shank

TYPE GAT - Male threaded with toothed hose shank

  • Type TC-3A - Stainle...

    Type TC-3A - Stainless Steel Tri-clamp with toothed hose shank - Hose Fittings

    Stainless Steel Tri-clampFitting standard: 3A.Other fitting standards are available.Other materials ...

  • TYPE CFL - Fix flang...

    TYPE CFL - Fix flange for composite hose

    Fix flange for composite hose.Flange standard: EN PN16Other flange standards are available.Remark: C...

Male threaded with toothed hose shank

Other threads are available.
Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Thread SW
mm mm
GAT013S6 SS316 1/2" 12.7 G1/2 22
GAT019S6 SS316 3/4" 19 G3/4 27
GAT025S6 SS316 1" 25.4 G1 36
GAT032S6 SS316 1-1/4" 32 G1-1/4 46
GAT038S6 SS316 1-1/2" 38 G1-1/2 55
GAT051S6 SS316 2" 50.8 G2 65
GAT064S6 SS316 2-1/2" 63.5 G2-1/2 85
GAT076S6 SS316 3" 76 G3 95
GAT080S6 SS316 3" 80 G3 95
GAT102S6 SS316 4" 102 G4 100
