TYPE PLSC - PFA lined CAMLOCK C with safety arms

TYPE PLSC - PFA lined CAMLOCK C with safety arms

  • TYPE PLC - PFA lined CAMLOCK C

    TYPE PLC - PFA lined CAMLOCK C

    Fitting standard: A-A-59326/DIN 2828.Assembly: safety clampFEP or PTFE liners are available.Virgin and anti-static liner...

  • TYPE PLD - PFA lined CAMLOCK D

    TYPE PLD - PFA lined CAMLOCK D

    Fitting standard: A-A-59326/DIN 2828.FEP or PTFE liners are available.Virgin and anti-static liners are available.Remark...

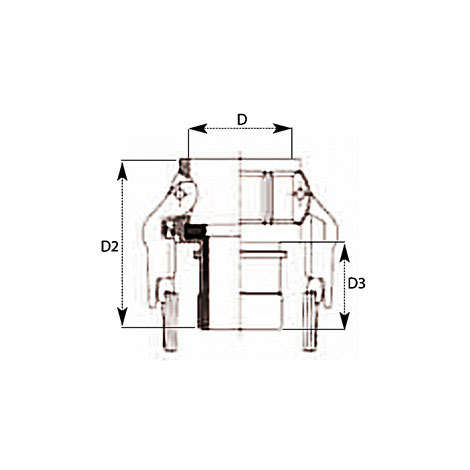

CAMLOCK C WITH 2 automatic safety lock CAM arms
Fitting standard: A-A-59326/DIN 2828
Assembly: safety clamp
FEP or PTFE liners are available.
Virgin and anti-static liners are available.
Remark: Can be customized.

Part no. Fitting Material Size For hose D±0.1 D2 min D3min
mm mm mm mm
PLSC019S6 SS316+PFA 3/4" 19 32.0 79.0 34.0
PLSC025S6 SS316+PFA 1" 25 37.0 86.0 34.0
PLSC032S6 SS316+PFA 1-1/4" 32 46.0 92.0 34.0
PLSC038S6 SS316+PFA 1-1/2" 38 54.0 93.0 34.0
PLSC050S6 SS316+PFA 2" 50 64.0 102.0 40.0
PLSC063S6 SS316+PFA 2-1/2" 63 77.0 121.0 52.0
PLSC075S6 SS316+PFA 3" 75 92.2 125.0 56.0
PLSC100S6 SS316+PFA 4" 100 120.0 168.0 80.5
