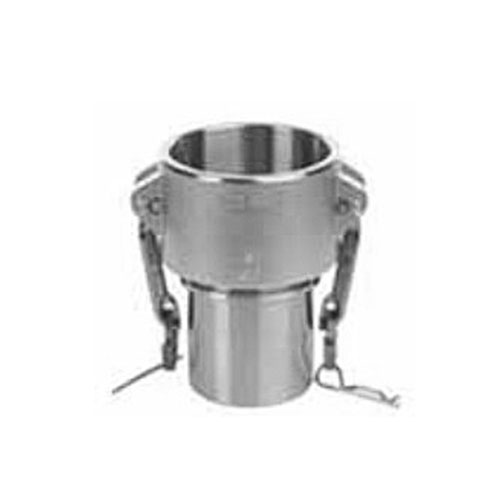

TYPE CS - Hose Fittings

TYPE CS - Hose Fittings

  • TYPE FLT - Hose Fittings

    TYPE FLT - Hose Fittings

    Fixed flange with toothed hose shank for connect with another hose closely, no easy to drop.Other flange standards are a...

  • TYPE SFN - Hose Fittings

    TYPE SFN - Hose Fittings

    Female fitting with smooth hose shank with nutFitting standard: SMSShank standard: EN14420-5/DIN2817Nut material: SS304A...

Fittings standard: DIN 2828.
Assembly: safety clamp.
Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Seal Weight
mm Kg/pcs
CS019S6 SS316 3/4" 19 NBR 0.24
CS025S6 SS316 1" 25 NBR 0.35
CS032S6 SS316 1-1/4" 32 NBR 0.59
CS038S6 SS316 1-1/2" 38 NBR 0.68
CS050S6 SS316 2" 50 NBR 0.90
CS063S6 SS316 2-1/2" 63 NBR 1.24
CS075S6 SS316 3" 75 NBR 1.57
CS100S6 SS316 4" 100 NBR 2.59
