TYPE SPSD

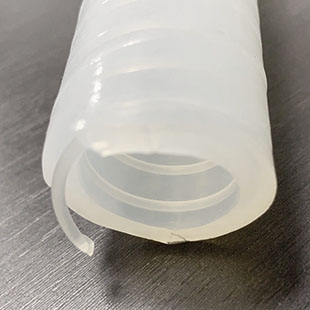

Transparent plastic spiral Reinforced Silicone Hose

Application: It is especially used for the transportation of liquid, solid and powder in pharmaceutical industry and cosmetic industry. In the food industry, it can also be used for wine and alcohol with less than 50% alcohol. It is a transparent silicone hose, smooth inside and outside the wall, enabling the flow of material to flow smoothly, and can be used in conjunction with a medical respirator. It is resistant to suction while no metal components are detected.
Advantages: Lightweight, metal-free, smooth inside and outside
Construction: Platinum cured Silicone with single plastic spiral reinforcement
Color: Transparent
Temp. Range: -60°C and 180°C
Certification: FDA, USP, BFR, USDA, ISO-10993
Standard length: 6m

Part no.  ID  OD  Bending radius  Work pressure  Bursting pressure  Vacuum
in. mm mm mm bar bar bar
SPSD006 1/4" 6.4 12.5 50 4.8 9.6 0.4
SPSD008 5/16" 7.9 14.0 70 4.6 9.2 0.4
SPSD010 3/8" 9.5 16.0 100 4.4 8.8 0.4
SPSD013 1/2" 12.7 19.0 120 4.2 8.4 0.4
SPSD016 5/8" 15.9 22.0 100 4 8 0.4
SPSD019 3/4" 19 25.0 120 3.6 7.2 0.4
SPSD025 1" 25.4 31.0 150 3.2 6.4 0.4
SPSD032 1-1/4" 32 38.0 180 3 6 0.4
SPSD038 1-1/2" 38 44.0 210 2.8 5.6 0.4
SPSD051 2" 50.8 60.0 300 2.5 5 0.4
