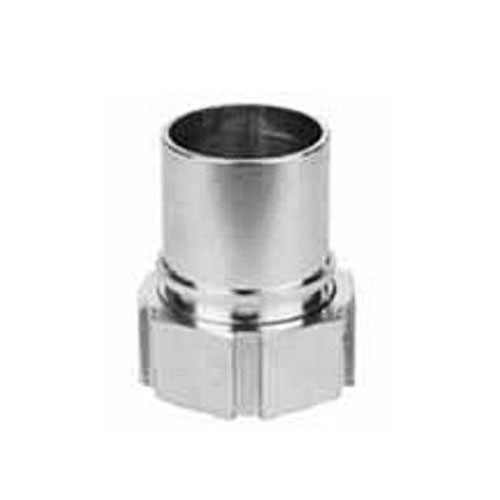

TYPE GI - Female threaded with smooth hose shank

TYPE GI - Female threaded with smooth hose shank

  • Camlock-DP, Type DP ...

    Camlock-DP, Type DP - Stainless steel quick coupling camlock for hose fitting

    Fittings standard: A-A-59326/DIN 2828.Other materials are available.Remark: Can be customized.

  • Type TC-3A - Stainle...

    Type TC-3A - Stainless Steel Tri-clamp with toothed hose shank - Hose Fittings

    Stainless Steel Tri-clampFitting standard: 3A.Other fitting standards are available.Other materials ...

Female threaded with smooth hose shank

Fittings standard: EN14420-5/DIN2817.
Assembly: safety clamp
Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Thread Thread seal SW Weight
mm mm Kg/pcs
GI013S6 SS316 1/2" 13 G1/2 PTFE 24 0.10
GI019S6 SS316 3/4" 19 G3/4 PTFE 30 0.15
GI025S6 SS316 1" 25 G1 PTFE 36 0.16
GI032S6 SS316 1-1/4" 32 G1-1/4 PTFE 46 0.18
GI038S6 SS316 1-1/2" 38 G1-1/2 PTFE 55 0.29
GI050S6 SS316 2" 50 G2 PTFE 65 0.44
GI063S6 SS316 2-1/2" 63 G2-1/2 PTFE 85 0.75
GI065S6 SS316 2-1/2" 65 G2-1/2 PTFE 85 0.75
GI075S6 SS316 3" 75 G3 PTFE 100 1.12
GI080S6 SS316 3" 80 G3 PTFE 100 1.12
GI100S6 SS316 4" 100 G4 PTFE 125 3.90
