PCTFE Flanged Quick Coupler - FLQC

PCTFE Flanged Quick Coupler - FLQC

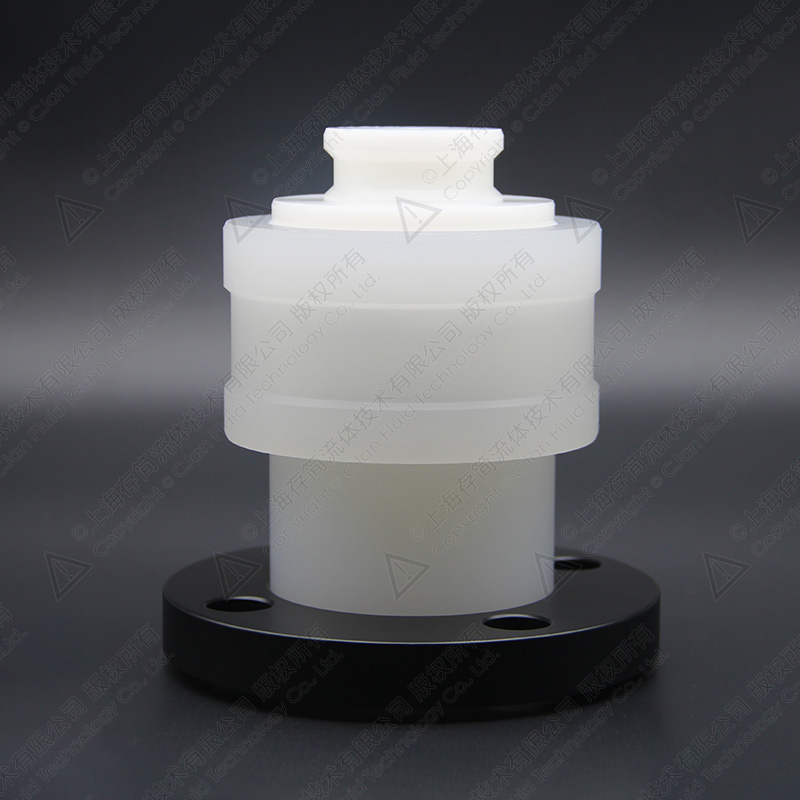

PCTFE Flanged Quick Coupler For Tanker - FLQC

(PCTFE Check Valve)

Application:

Photovoltaic acid supply system, high-purity chemical containers, liquefied petroleum gas (liquid ammonia) storage tank station and tanker system, semiconductor manufacturing equipment, drug supply equipment, environmental equipment, etc.

Applicable media:

Strong acids and bases, such as hydrofluoric acid (HF), hydrochloric acid (HCL), sulfuric acid (H2SO4), potassium hydroxide (KHO), sodium hydroxide (NAHO), hydrogen peroxide (H2O2), etc.

Features:

Instant lock connection, simple structure, easy operation, quick connection and opening;

Compact size, good sealing and interchangeability, safe and reliable;

All accessories are made of materials that are resistant to chemical corrosion;

Male and female heads can seamlessly integrate with the SURPASS QCH series;

Various standards (EN, ASME, JIS) of flanges can be optionally selected;

Provide PP or HDPE material dust cover.

Material:

Body: PCTFE (PVDF is available)

Spring: PFA coated stainless steel

Small sealing ring: FFKM

Large sealing ring: PFA coated FKM

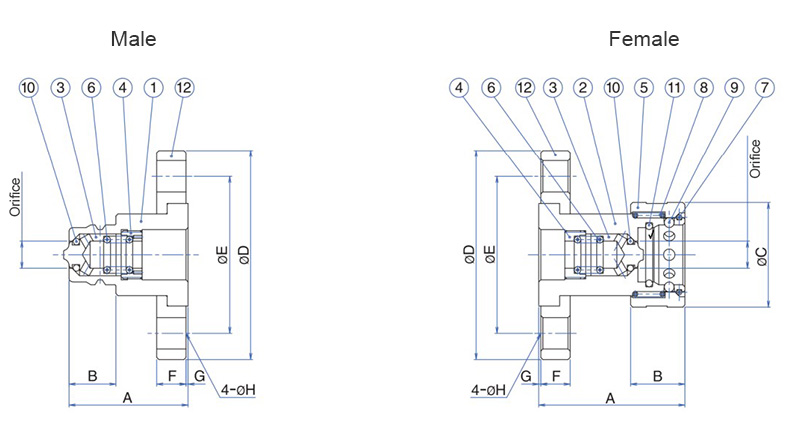

Male:

Part No. A(mm) B(mm) ΦD(mm) ΦE(mm) F(mm) G(mm) H(mm) Orifice(mm) Flange
FLQC20A-M 57 22.4 100 75 14 1 15 Φ13 JIS   10K 20A
FLQC25A-M 72.2 34.2 125 90 14 1 19 Φ17 JIS   10K 25A
FLQC40A-M 98 51 140 105 6 2 19 Φ27 JIS   10K 40A

Female:

Part No. A(mm) B(mm) ΦC(mm) ΦD(mm) ΦE(mm) F(mm) G(mm) H(mm) Orifice(mm) Flange
FLQC20A-F 70 26 50 100 75 14 1 15 Φ13 JIS   10K 20A
FLQC25A-F 97 36 70 125 90 14 1 19 Φ17 JIS   10K 25A
FLQC40A-F 112 54 95 140 105 16 2 19 Φ27 JIS   10K 40A
