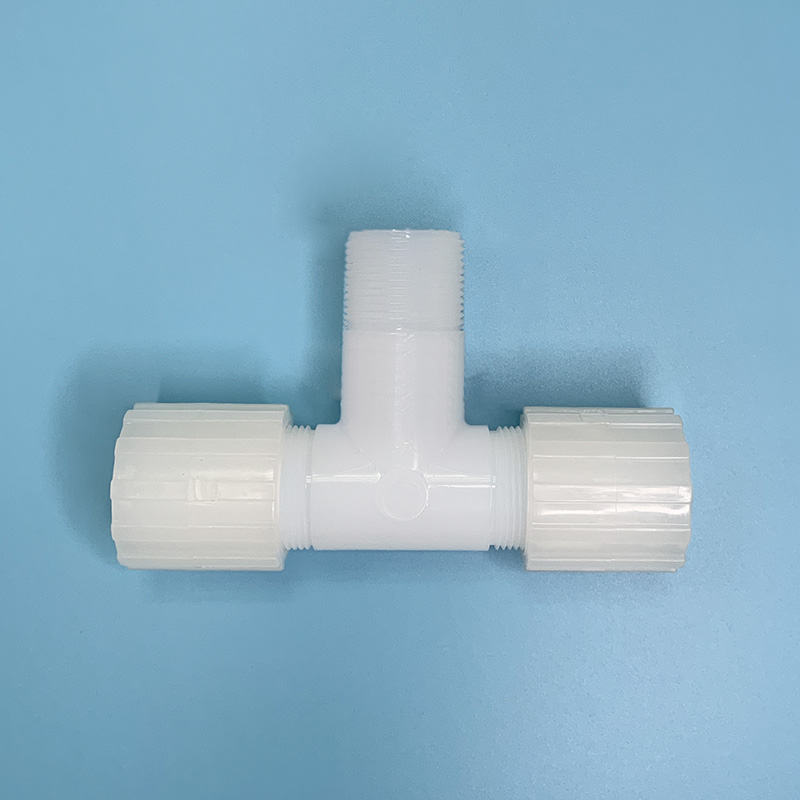

  • PFA Male Branch Tee - MBTA

    PFA Male Branch Tee - MBTA

    Features: it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosiv...

PFA Male Connector - MCA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

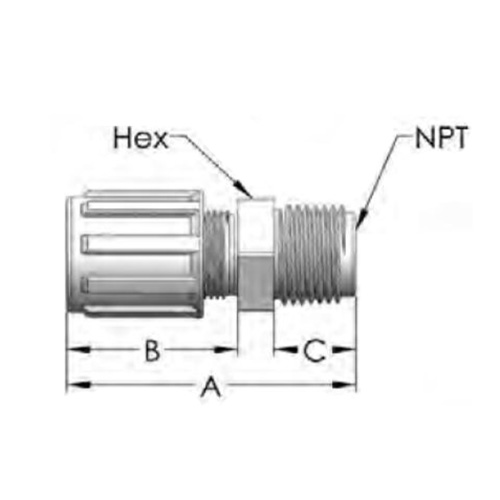

Part No. Tube OD NPT Thread Orifice A B C Hex
(inch) (inch) (mm) (mm) (mm) (mm) (mm)
MCA04021 1/4" 1/8" 3.81mm 48.51mm 29.46mm 11.43mm 15.88mm
MCA04041 1/4" 1/4” 3.81mm 50.80mm 29.46mm 13.97mm 15.88mm
MCA04061 1/4" 3/8" 3.81mm 50.80mm 29.46mm 13.97mm 17.46mm
MCA04081 1/4" 1/2" 3.81mm 53.85mm 29.46mm 16.76mm 20.64mm
MCA06021 3/8" 1/8" 4.57mm 53.09mm 32.26mm 13.97mm 20.64mm
MCA06041 3/8" 1/4” 6.35mm 53.59mm 32.26mm 13.97mm 20.64mm
MCA06061 3/8" 3/8" 6.35mm 53.59mm 32.26mm 13.97mm 20.64mm
MCA06081 3/8" 1/2" 6.35mm 56.13mm 32.26mm 16.76mm 23.81mm
MCA06121 3/8" 3/4” 6.35mm 56.39mm 32.26mm 16.76mm 30.16mm
MCA06161 3/8" 1" 6.35mm 60.71mm 32.26mm 21.59mm 36.51mm
MCA08041 1/2” 1/4” 7.40mm 55.88mm 34.54mm 13.97mm 23.81mm
MCA08061 1/2” 3/8" 9.65mm 55.88mm 34.54mm 13.97mm 23.81mm
MCA08081 1/2” 1/2" 9.65mm 58.93mm 34.54mm 16.76mm 23.81mm
MCA08121 1/2” 3/4” 9.65mm 58.93mm 34.54mm 16.76mm 30.16mm
MCA08161 1/2” 1" 9.65mm 63.75mm 34.54mm 21.84mm 36.51mm
MCA12061 3/4” 3/8" 9.65mm 60.20mm 38.61mm 14.22mm 23.81mm
MCA12081 3/4” 1/2" 12.95mm 62.99mm 38.61mm 17.02mm 30.16mm
MCA12121 3/4” 3/4” 16.00mm 62.99mm 38.61mm 17.02mm 30.16mm
MCA12161 3/4” 1" 16.00mm 67.56mm 38.61mm 21.59mm 36.51mm
MCA16081 1" 1/2" 12.95mm 68.33mm 43.94mm 17.02mm 36.51mm
MCA16121 1" 3/4” 16.76mm 68.33mm 43.94mm 17.02mm 36.51mm
MCA16161 1" 1" 22.35mm 73.15mm 43.94mm 21.84mm 36.51mm
