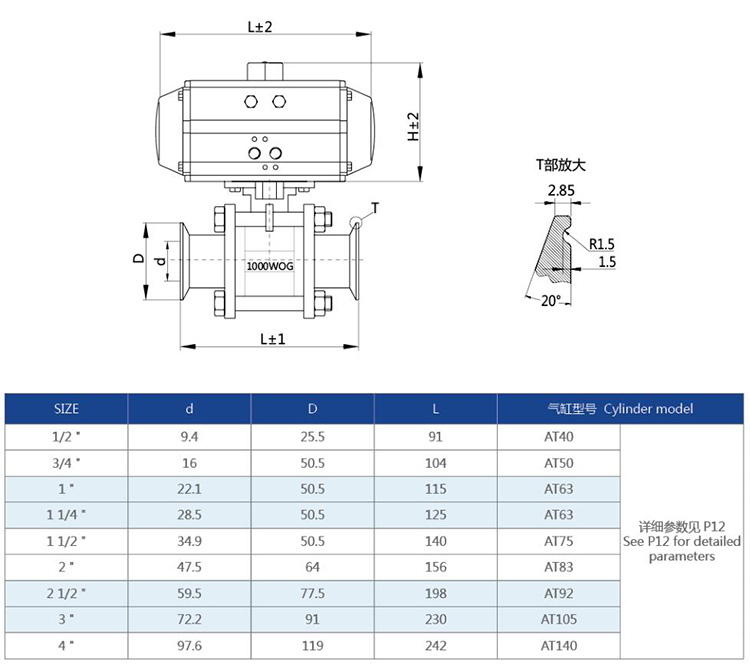

Sanitary Stainless Steel Pneumatic 3 pc Ball Valve
With Spring Actuator
| Product Name: | 3 Piece ball valve |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | Silicon, EPDM, PTFE,Viton, NBR |
| Max. Working Pressure: | 10Bar |
| Max.Working Temperature: | 120 degree C |
| Availably size: | DN15-DN100 or 1/2" - 4" |
| Availably connection: | Weld, Clamp, Female, Flange, or Combinations |
| Inside SurfaceTreatment: | Ra≥0.4-0.8 um |
| SurfaceTreatment: | Ra≥0.8-1.6 um |
| Availably standard: | DIN,SMS,3A,RJT,IDF,ect. |
| Operated type: | Manual,Pneumatic,Electric |
| Certification: | ISO9001:2008,CE,3A |
