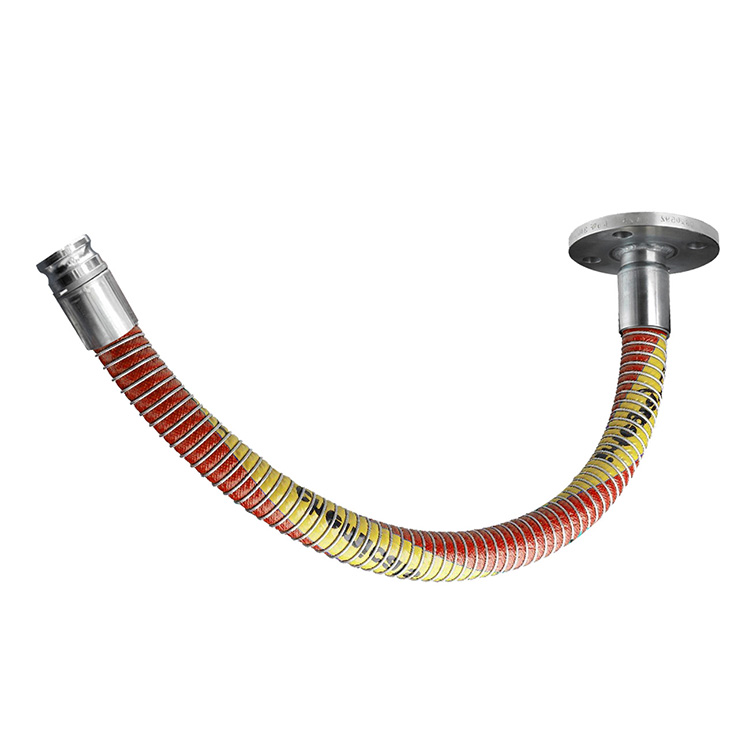

TYPE SGT
Composite Hose with PTFE Film

Construction:
Internal helix: Stainless steel
External helix: galvanized steel
Inner tube: PTFE film
Temp. Range: -30°C to + 130°C
Application: This anti-static composite hose is designed for suction and discharge use on plant or road/rail tankers with a large number of very aggressive or very corrosive chemicals, chemical waste. The hose construction is exceptionally lightweight and flexible for ease of handling yet remains robust, hard-wearing and cost effective. Electrically resistant to less than 10 ohms.
Standard/Approval: BS EN13765：2003 and BS5842：1980（1996）
Length: 3/4” up to 4” 40m, 5” up to 8” 20m
GST also can be available.

Part No.	ID		Bending Radius	Working Pressure	Bursting Pressure	Length
Part No.	in.	mm	mm	bar	bar	m
SGT025	1"	25	100	17	51	40
SGT038	1-1/2"	38	112	17	51	40
SGT051	2"	51	150	17	51	40
SGT065	2-1/2"	65	190	17	51	40
SGT076	3"	76	225	17	51	40
SGT102	4"	102	350	17	51	40
SGT152	6"	152	600	17	51	20
SGT203	8"	203	850	17	51	20
SGT253	10"	253	1150	17	51	20
Remark: Working Pressure 10bar is available.
