PFA Union Flange Adaptor - UFAA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

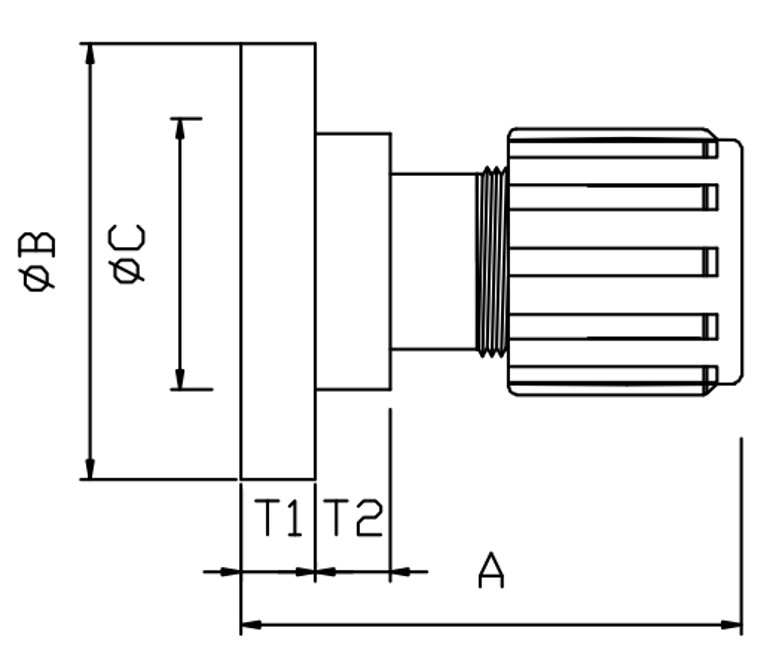

Part No. Tube OD A B C T1 T2
(inch) (mm) (mm) (mm) (mm) (mm)
UFAA0815 1/2" 65 45 29 6 14
UFAA1220 3/4" 70 54 37 7 13
UFAA1625 1" 76 63 49 8 12
UFAA2032 1-1/4" 90 70 56 8 11
UFAA2440 1-1/2" 96 85 65 10 10
UFAA2450 1-1/2" 96 90 65 10 10
*Can be customized according to different flange standards
