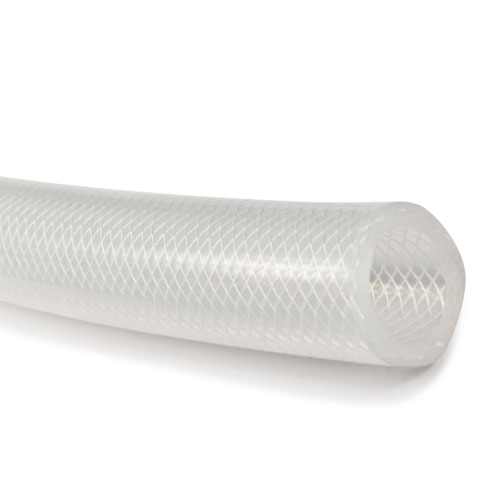

TYPE PF - Polyester Fiber Braid Reinforced Silicone Hose

TYPE PF - Polyester Fiber Braid Reinforced Silicone Hose

Silicone tube generally includes pump tubing, single-layer braided silicone tube, multi-layer braided reinforced silicone hose. For transporting liquids at low pressure where a closed bending radius is not required. Polyester yarn weave in hose wall enhances hose compressive capacity.

Main features:
Braided silicone tubing can be sterilized by CIP, SIP or radiation or autoclave. The decomposition rate is low in pharmaceutical and biomedical applications. Furthermore, braid reinforced silicone hose’s bending radius is small and with good flexibility.
It can tolerant extreme temperature, compression-resistance, chemicals-resistance, ozone-resistance, radiation-resistance, moisture-resistance. Braid reinforced silicone hose does not decompose any odor and taste.

Key benefits:
Braided silicone tubing is manufactured from platinum cured for a high degree of purity
Reinforced silicone hose with high pressure ratings
Polyester Fiber Braid Reinforced Silicone Hose is sterilizable and autoclavable.
The silicone hoses are odorless and tasteless
Resists extreme temperatures and retains flexibility: -60℃ and 200℃.
Available in bulk assemblies
Colour: Translucent (Colored covers available)

Applications:
For transporting liquids at low pressure where a closed Bending radius is not required. Braided silicone tubing is not recommended for Vacuum. Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard maximum length is 50 meters, for a longer length, please contact us.

** PRESSURE DECREASE BY 1% FOR EVERY 1℃ ABOVE 100℃.

Part no.  ID  OD  Bending radius  Work pressure  Bursting pressure
in.  mm  mm  mm  bar  bar
PF005 3/16" 4.8 10 25 12 45
PF006 1/4" 6.4 12.6 40 9.5 28.5
PF008 5/16" 7.9 15 45 8 24
PF010 3/8" 9.5 16.5 60 7 21
PF013 1/2" 12.7 20.3 70 6 18
PF016 5/8" 15.9 24 85 4.5 13.5
PF019 3/4" 19 28 95 4 12
PF022 7/8" 22 31.5 110 3.5 10.5
PF025 1" 25.4 35.2 135 3 9
PF032 1-1/4" 32 40.8 160 2.5 7.5
