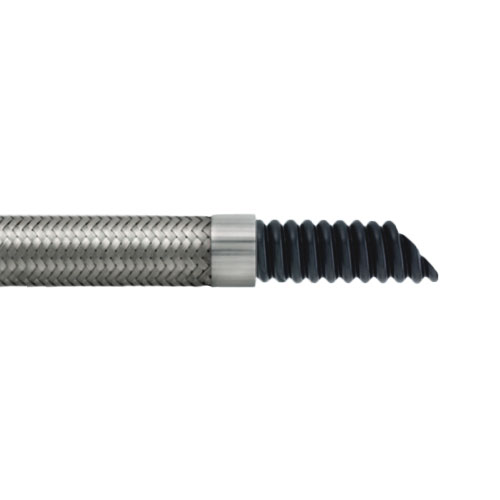

Type TCAS-
Stainless Steel Braid Cover Convolutedanti-staticPTFE Tube

Construction: Type TCAS is manufactured from convolutedanti-static PTFE tube with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of superb flexibility, zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification: FDA

Part no. ID OD Tube Wall thickness Bending Work pressure Bursting pressure
radius
in. mm mm mm mm bar bar
TCAS010 3/8" 9.5 15.7 0.75 25 110 440
TCAS013 1/2" 12.7 18.7 0.75 35 100 400
TCAS016 5/8" 15.9 22.5 0.75 65 85 340
TCAS019 3/4" 19 26 0.9 65 80 320
TCAS025 1" 25.4 32 1 75 60 240
TCAS032 1-1/4" 32 42.7 1 100 45 180
TCAS038 1-1/2" 38 48 1 140 35 140
TCAS051 2" 50.8 61.5 1.1 180 25 100
