TYPE SFN - Female fitting with smooth hose shank with nut

TYPE SFN - Female fitting with smooth hose shank with nut

  • TYPE CC - Female cam...

    TYPE CC - Female camlock for composite hose

    Female camlock for composite hose.CAMLOCK standard: A-A-59326/DIN 2828Other threads are available.Re...

  • Camlock-B, Type B - ...

    Camlock-B, Type B - Stainless steel quick coupling camlock for hose fitting

    Fittings standard: A-A-59326/DIN 2828Other materials are available.Other threads are available.Remar...

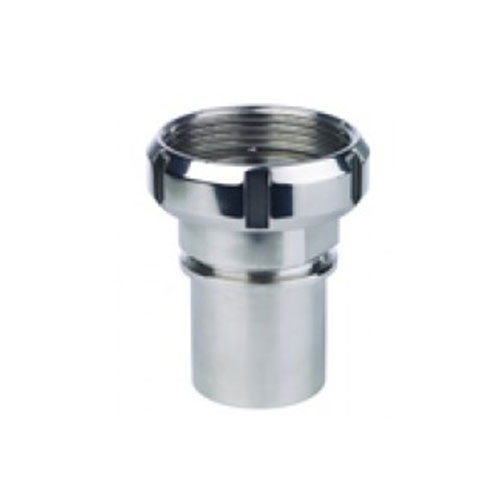

Female fitting with smooth hose shank with nut
Fitting standard: SMS
Shank standard: EN14420-5/DIN2817
Nut material: SS304
Assembly: safety clamp
Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Thread Weight
mm Kg/pcs
SFN025S6LS4 SS316L+SS304 1" 25 RD 40 x 1/6" 0.23
SFN032S6LS4 SS316L+SS304 1-1/4" 32 RD 48 x 1/6" 0.32
SFN038S6LS4 SS316L+SS304 1-1/2" 38 RD 60 x 1/6" 0.51
SFN050S6LS4 SS316L+SS304 2" 50 RD 70 x 1/6" 0.70
SFN063S6LS4 SS316L+SS304 2-1/2" 63 RD 85 x 1/6" 1.04
SFN075S6LS4 SS316L+SS304 3" 75 RD 98 x 1/6" 1.61
SFN100S6LS4 SS316L+SS304 4" 100 RD 132 x 1/6" 3.32
