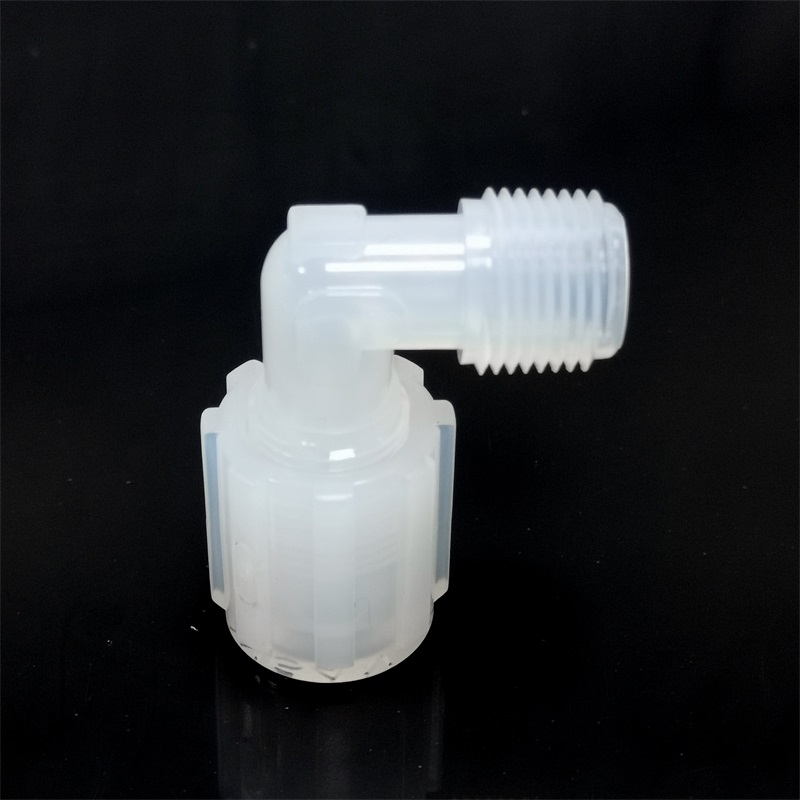

PFA 90° Male Elbow - MEA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

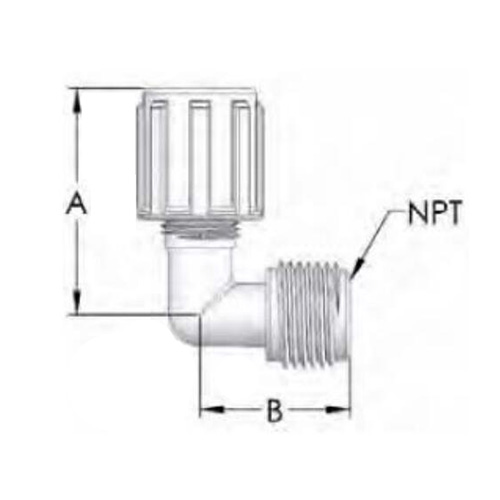

Part No. Tube OD NPT Thread Orifice A B
(inch) (inch) (mm) (mm) (mm)
MEA04021 1/4" 1/8" 3.81 42.16 26.92
MEA04041 1/4" 1/4” 3.81 42.16 26.92
MEA04061 1/4" 3/8" 3.81 42.16 28.50
MEA04081 1/4" 1/2" 3.81 42.16 29.70
MEA06021 3/8" 1/8" 4.57 44.70 26.90
MEA06041 3/8" 1/4” 6.35 44.70 26.90
MEA06061 3/8" 3/8" 6.35 44.70 28.50
MEA06081 3/8" 1/2" 6.35 44.70 29.70
MEA08041 1/2” 1/4” 7.40 47.24 26.92
MEA08061 1/2” 3/8" 9.65 47.24 28.50
MEA08081 1/2” 1/2" 9.65 47.24 29.70
MEA08121 1/2” 3/4” 12.45 47.24 34.55
MEA12061 3/4” 3/8" 9.14 56.13 31.20
MEA12081 3/4” 1/2" 13.46 56.13 35.55
MEA12121 3/4” 3/4” 16.00 56.13 34.80
MEA12161 3/4” 1" 16.00 56.13 45.70
MEA16081 1" 1/2" 12.95 68.60 34.80
MEA16121 1" 3/4” 16.76 68.60 41.65
MEA16161 1" 1" 22.10 68.60 45.70
