PFA Plug Valve - PPV

The PFA Plug Valve PPV Series is designed for high purity semiconductor applications. Designed with moulded high purity PFA body and machined PTFE stem. Minimized form design is ideal for semiconductor applications with very high spatial requirements. The stem and body bonding ensures sealing while maintaining a smooth 90 degree rotation operation. The two ends can be connected by double-flare type or by flare type + NPT male.
Features:
- Perfluorine material, strong corrosion resistance
- Minimize design, take up little space
- Connection mode is more practical
- Rotate at -90 degree for stable flow
Connection Size: 1/4 “ Double Flare, 1/4" Flare*1/4NPT
Maximum media temperature: 120 ℃
Ambient temperature: 17 – 66 ℃
Maximum operating pressure: 4Bar

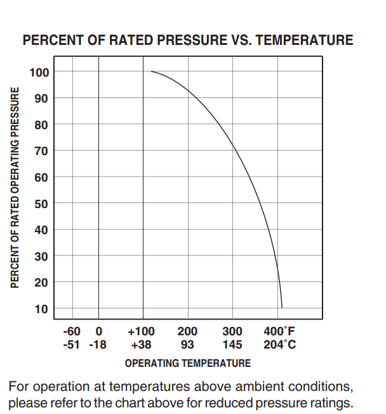

Note: When the operating temperature is high,
please refer to the right figure for the applicable pressure



Part No.

Tube OD

Material

A

B

C

D

( inch )

( inch )

( mm )

( mm )

PPV0041

1/4”

PTFE+PFA

1/4”扩口

1/4”扩口

83

25

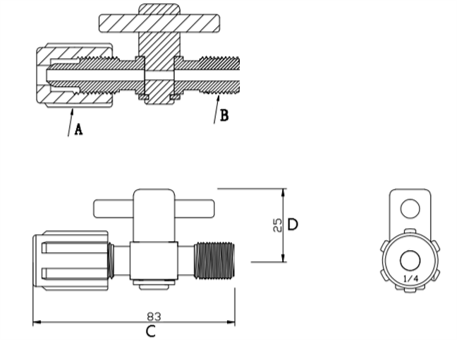

PPVM04041

1/4”

PTFE+PFA

1/4”扩口

1/4”NPT

83

25
