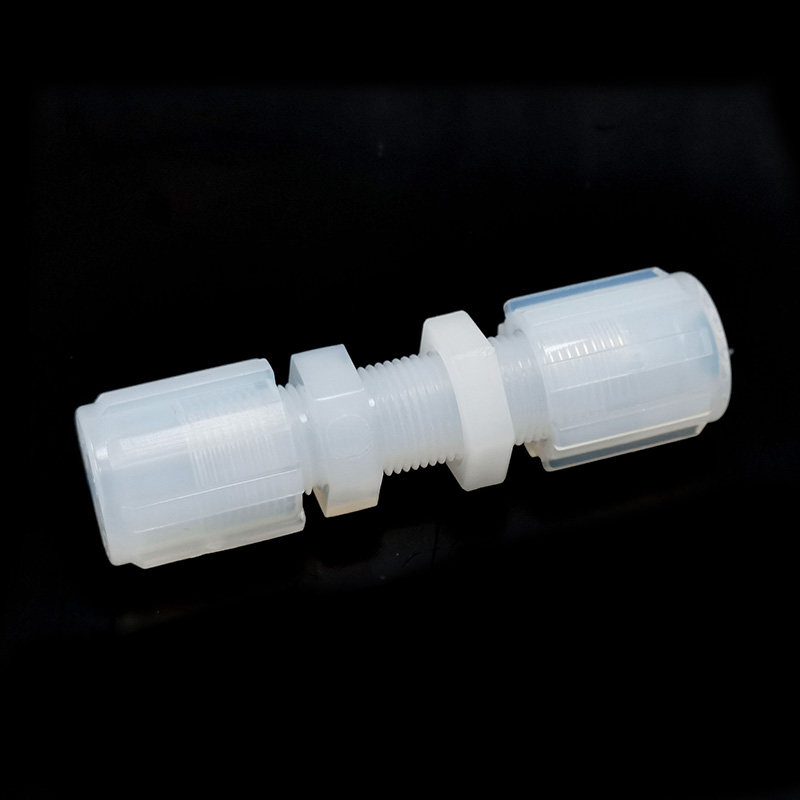

PFA Straight Union Panel Mount - SUPA

Features:
it is specially used in high-purity semiconductor industry, and also suitable for ultra pure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between - 40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance.
Material: PFA
Interface type: flared connection
Maximum operating temperature: 200 ℃
Maximum service pressure: 0.7MPa
Applicable medium: liquid
*Nuts are available in PFA and PVDF.
*PVDF is not suitable for applications exceeding 120℃

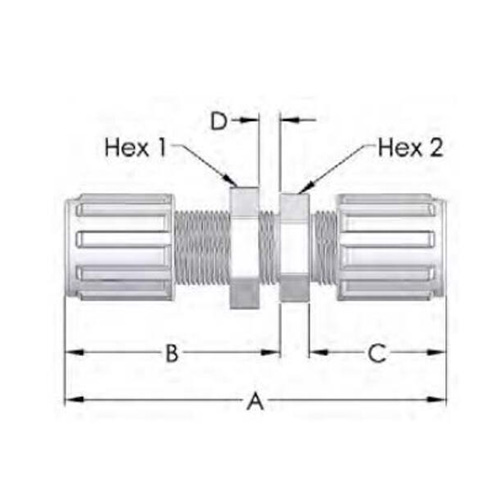

Part No. Tube OD Orifice Hole Size A B C DMax
(inch) (mm) (mm) (mm) (mm) (mm) (mm)
SUPA041 1/4" 3.81mm 13mm 86.36mm 49.28mm 29.46mm 12.70mm
SUPA061 3/8" 6.35mm 17mm 90.93mm 51.31mm 32.26mm 12.70mm
SUPA081 1/2"* 9.65mm 20mm 96.52mm 56.90mm 34.54mm 12.70mm
SUPA121 3/4" 16.00mm 26mm 104.39mm 58.42mm 38.61mm 12.70mm
SUPA161 1" 22.35mm 38mm 115.06mm 64.01mm 43.94mm 12.70mm
